AS739, AT693 and AU734 antibodies label the spike S protein from SARS-CoV-2 by immunofluorescence


  • Cyril Guilhen UNIGE
  • Ezgi Gozlugol
  • Margaux Gosetto
  • Nina Payot
  • Khatiba Khatibi
  • Emma Jaques
  • Marie N. Schmid
  • Julien Ollivier
  • Alexandre P. Vaudano
  • François Prodon
  • Maxime Volery
  • Clément Poncet
  • Nylsa Chammartin
  • Célia Lazzarotto
  • Sara Da Fonte
  • Anthony Nemeth
  • Clément Bindschaedler
  • Zacharie El Matribi
  • Serkan Berkcan
  • Ezia Oppliger
  • Daniel Gil
  • Ali Sassi



The recombinant antibodies AS739, AT693 and AU734 detect by immunofluorescence the spike S protein from SARS-CoV-2.


The spike S glycoprotein (UniProt P0DTC2) mediates the attachment of coronaviruses to the host ACE2 receptor (through the Receptor-Binding Domain [RBD] in the S1 subunit) and fusion with the host cell membrane (through the S2 subunit) (Yan et al., 2020). Five recombinant antibodies recognizing the S1 domain of the S protein from SARS-CoV-2 (AS739, AT693, AU197, AU734 and AU753) were tested for their ability to recognize the S protein by immunofluorescence. Three antibodies (AS739, AT693 and AU734) detected specifically the S protein from SARS-CoV-2; two others (AU197 and AU753) did not.

Materials & Methods

Antibodies: ABCD_AS739, ABCD_AT693, ABCD_AU197, ABCD_AU734 and ABCD_AU753 antibodies (ABCD nomenclature, were produced by the Geneva Antibody Facility ( as mini-antibodies with the antigen-binding portion fused to a rabbit IgG Fc. The synthesized scFv sequences (GeneArt, Invitrogen) correspond to the sequences of the variable regions joined by a peptide linker (GGGGS)3 (see Table 1 for clone names and references). HEK293 suspension cells (growing in FreeStyle™ 293 Expression Medium, Gibco 12338) were transiently transfected with the vector coding for the scFv-Fc of each antibody. Supernatants (see Table 1 for individual yields) were collected after 4 days.

ABCD Clone Epitope Reference Yield ( mg /L)
AS739 S309 S1/RBD Pinto et al., 2020 100
AT693 BD-23 S1/RBD Cao et al., 2020 80
AU197 2B04 S1/RBD Alsoussi et al., 2020 30
AU734 2-43 S1/RBD Liu et al., 2020 40
AU753 Mab362 S1/RBD Ejemel et al., 2020 10
Table 1. Clone number, epitope, reference and production yields for the antibodies used in this study.

Antigen: Vero-B4 adherent cells (growing in DMEM, Gibco 11960044, supplemented with 10% FBS) were transiently transfected 3 days before the experiment with a vector coding for the full-length SARS-CoV-2 S protein (BEI Resources, NR-52310, pCAGGS vector containing the full-length SARS-CoV-2/Wuhan-Hu-1 S glycoprotein coding sequence). Non-transfected cells were used as a negative control.

Protocol: Transfected Vero-B4 cells were fixed with methanol at -20 °C for 2 min. Fixed cells were washed once in PBS and once in PBS + 0.2% (w/v) BSA (PBS-BSA) during 10 min, and then incubated with the anti-S antibodies (final concentration 5 mg/L in PBS-BSA) for 30 min. After 3 washes (10 min) with PBS-BSA, cells were incubated for 30 min in PBS-BSA with secondary goat anti-rabbit IgG conjugated to AlexaFluor-488 (1:400, Molecular Probes A11034). After 3 washes (10 min) with PBS-BSA, cells were mounted on slides (Menzel-Gläser, 76x26 mm) with Möwiol (Hoechst) + 2.5% (w/v) DABCO (Fluka 33480). Pictures were taken using a Zeiss LSM800 confocal microscope, with a 63x Neofluar oil immersion objective.


Antibodies AS739, AT693 and AU734 specifically detected a signal in Vero-B4 cells expressing the SARS-CoV-2 S protein (Fig. 1). The absence of staining in non-transfected cells indicated the specificity of the signal observed. The distribution observed is consistent with a presence mostly in the early secretory pathway (endoplasmic reticulum and Golgi apparatus). AU753 did not recognize the S protein; this is possibly due to the fact that this antibody is poorly produced. A non-specific signal was observed with the AU197 antibody in non-transfected cells.

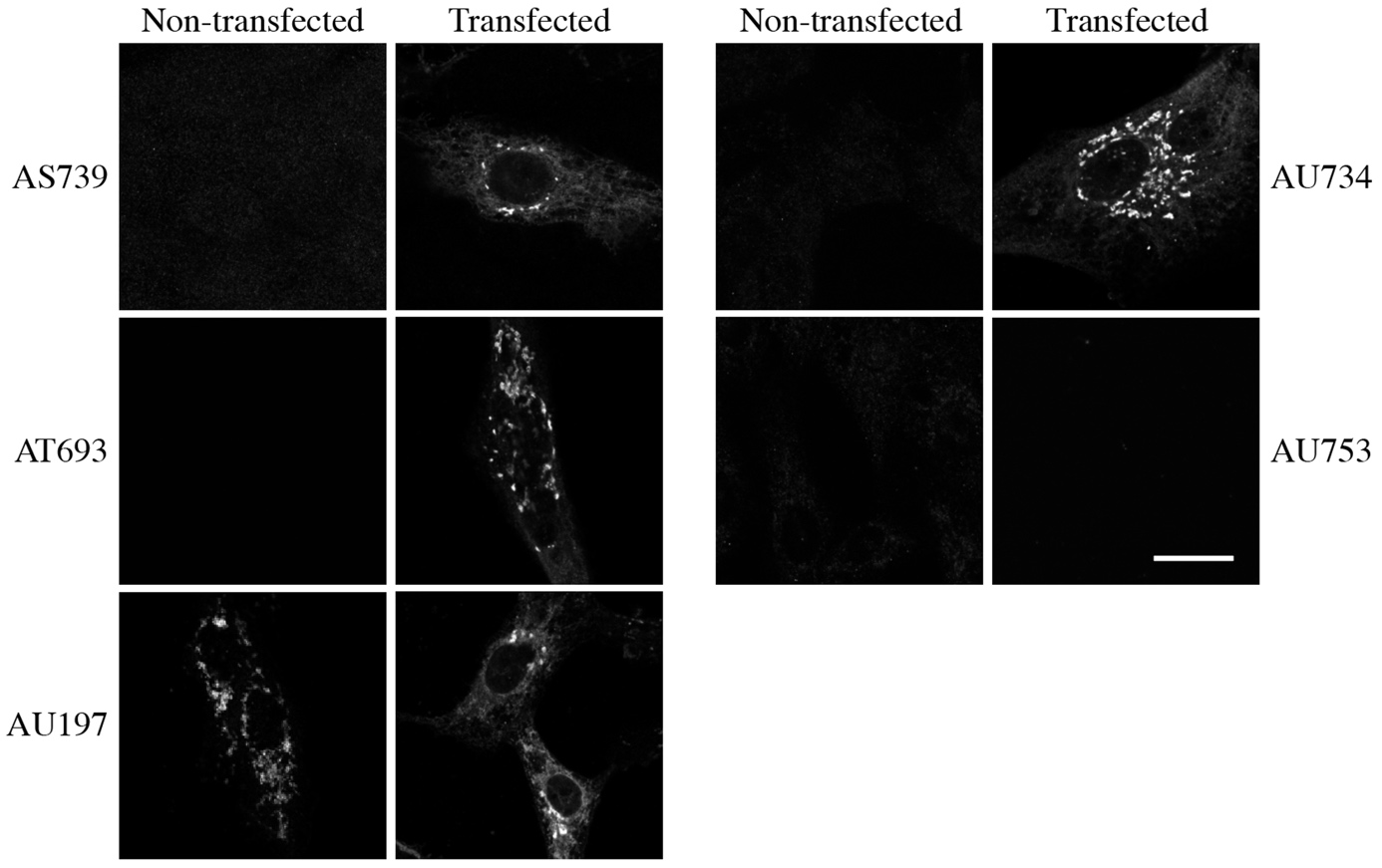

Figure 1. AS739, AT693 and AU734 specifically labeled transfected Vero-B4 cells expressing the SARS-CoV-2 S protein. AU753 did not recognize the S protein. No labeling was seen in non-transfected cells except with the antibody AU197, which gives a non-specific signal in these conditions. Scale bar: 20 µm.

Conflict of interest

The authors declare no conflict of interest.


Alsoussi WB, Turner JS, Case JB, et al. A potently neutralizing antibody protects mice against SARS-CoV-2 infection. J Immunol. 2020; 205:915-22. PMID: 32591393

Cao Y, Su B, Guo X, et al. Potent neutralizing antibodies against SARS-CoV-2 identified by high-throughput single-cell sequencing of convalescent patients’ B cells. Cell 2020; 182:73-84. PMID: 32425270

Ejemel M, Li Q, Hou S, et al. A cross-reactive human IgA monoclonal antibody blocks SARS-CoV-2 spike-ACE2 interaction. Nat Commun. 2020; 11:4198. PMID: 32826914

Liu L, Wang P, Nair MS, et al. Potent neutralizing antibodies against multiple epitopes on SARS-CoV-2 spike. Nature 2020; 584:450-6. PMID: 32698192

Pinto D, Park Y-J, Beltramello M, et al. Cross-neutralization of SARS-CoV-2 by a human monoclonal SARS-CoV antibody. Nature 2020; 583: 290-5. PMID: 32422645

Yan R, Zhang Y, Li Y, Xia L, Guo Y, Zhou Q. Structural basis for the recognition of SARS-CoV-2 by full-length human ACE2. Science 2020; 367:1444-1448. PMID: 32132184
