AS739, AT693 and AU734 antibodies recognize the spike S protein from SARS-CoV-2 by ELISA


  • Nina Payot
  • Clément Poncet
  • Maxime Volery
  • Clément Bindschaedler
  • Margaux Gosetto
  • Ezia Oppliger
  • Marie N. Schmid University of Geneva
  • Monica Didier
  • Philippe Hammel
  • Ali Sassi
  • Daniel Gil
  • Serkan Berkcan
  • Zacharie El Matribi
  • Alexandre P. Vaudano
  • Khatiba Khatibi
  • Anthony Nemeth
  • Ezgi Gozlugol
  • Nylsa Chammartin
  • Célia Lazzarotto
  • Julien Ollivier
  • Sara Da Fonte
  • Emma Jaques
  • Cyril Guilhen



The recombinant antibodies AS739, AT693 and AU734 detect by ELISA the spike S protein from SARS-CoV-2.


The spike S glycoprotein (UniProt P0DTC2) mediates the attachment of coronaviruses to the host ACE2 receptor (through the Receptor-Binding Domain [RBD] in the S1 subunit) and fusion with the host cell membrane (through the S2 subunit) (Yan et al., 2020). Five recombinant antibodies recognizing the S1 domain of the S protein from SARS-CoV-2 (AS739, AT693, AU197, AU734 and AU753) were tested for their ability to recognize the S protein by ELISA. Three antibodies (AS739, AT693 and AU734) detected the S protein from SARS-CoV-2; two others (AU197 and AU753) did not.

Materials & Methods

Antibodies: ABCD_AS739, ABCD_AT693, ABCD_AU197, ABCD_AU734 and ABCD_AU753 antibodies (ABCD nomenclature, were produced by the Geneva Antibody Facility ( as mini-antibodies with the antigen-binding portion fused to a rabbit IgG Fc. The synthesized scFv sequences (GeneArt, Invitrogen) correspond to the sequences of the variable regions joined by a peptide linker (GGGGS)3 (see Table 1 for clone names and references). HEK293 suspension cells (growing in FreeStyle™ 293 Expression Medium, Gibco 12338) were transiently transfected with the vector coding for the scFv-Fc of each antibody. Supernatants (see Table 1 for individual yields) were collected after 4 days.

ABCD Clone Epitope Reference Yield (mg/L)
AS739 S309 S1/RBD Pinto et al., 2020 100
AT693 BD-23 S1/RBD Cao et al., 2020 80
AU197 2B04 S1/RBD Alsoussi et al., 2020 30
AU734 2-43 S1/RBD Liu et al., 2020 40
AU753 Mab362 S1/RBD Ejemel et al., 2020 10
Table 1. Clone number, epitope, reference and production yields for the antibodies used in this study.

Antigen: The prefusion ectodomain (residues 1-1208) of the SARS-CoV-2 S protein, with a KV->PP substitution at residues 986/987, a RRAR->GSAS substitution at residues 682-685, and C-terminal T4 fibritin trimerization motif, protease cleavage site, TwinStrepTag and 8xHisTag (PDB 6VSB; Wrapp et al., 2020), was transiently transfected into 25x108 suspension-adapted ExpiCHO cells (Thermo Fisher) using 1.5 mg plasmid DNA and 7.5 mg of PEI MAX (Polysciences) in 500 mL ProCHO5 medium (Lonza). Incubation with agitation was continued at 31°C and 4.5% CO2 for 5 days. The clarified supernatant was purified in two steps: via a Strep-Tactin XT column (IBA Lifesciences) followed by Superose 6 10/300 GL column (GE Healthcare) to a final concentration of 180 µg/ml in PBS.

Protocol: The whole procedure was carried out at room temperature. Biotinylated BSA (10 µg/mL) or S protein (10 µg/mL) were incubated in a streptavidin-coated 8-well plate (50 µl/well) (Pierce 15120) for 30 min. Each well was rinsed three times with 100 μl of washing buffer (PBS + 0.1% (w/v) BSA + 0.05% (w/v) Tween20), then incubated for 1 h with 50 µl of antibody-containing supernatant diluted in washing buffer as indicated (Fig. 1). After rinsing 3 times (100 µl washing buffer), wells were incubated with horseradish peroxidase-coupled goat anti-rabbit IgG (Sigma A8275, dilution 1:1000, 50 μl per well) for 30 min. After 5 rinses, Tetramethylbenzidine (TMB) substrate (Sigma T5569) was added (50 μl per well). The reaction was stopped by the addition of 25 μl of 2 M H2SO4. The absorbance (OD) was measured at 450 nm.


Antibodies AS739, AT693 and AU734 bound in a concentration-dependent manner to the SARS-CoV-2 spike S protein, but not to the BSA negative control (Fig. 1). AU197 and AU753 did not recognize the S protein by ELISA; for AU753, this is possibly due to the fact that this antibody is poorly produced.

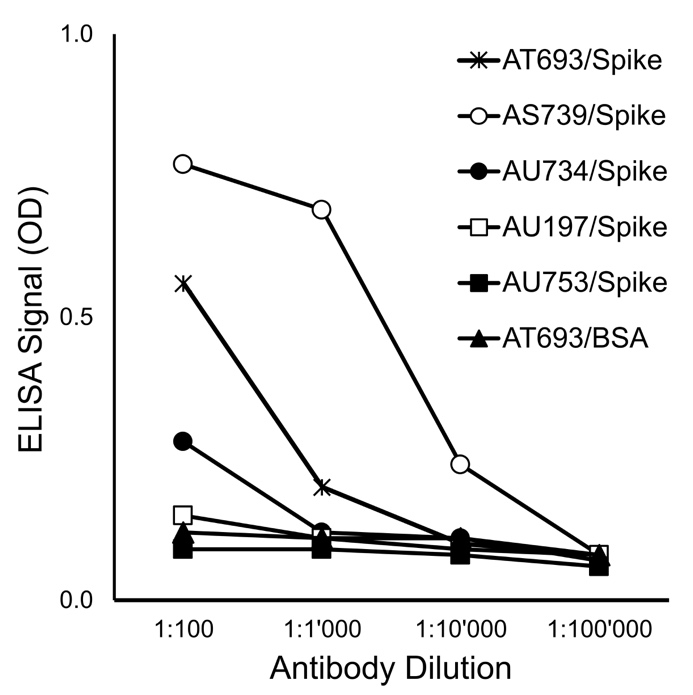

Figure 1. AS739, AT693 and AU734 bound specifically to the SARS-CoV-2 S protein, but not to the BSA control (shown only for AT693; AS739, AU197, AU734 and AU753 background curves were superimposed), as detected by ELISA.

Conflict of interest

The authors declare no conflict of interest.


Alsoussi WB, Turner JS, Case JB, et al. A potently neutralizing antibody protects mice against SARS-CoV-2 infection. J Immunol. 2020; 205:915-22. PMID: 32591393

Cao Y, Su B, Guo X, et al. Potent neutralizing antibodies against SARS-CoV-2 identified by high-throughput single-cell sequencing of convalescent patients’ B cells. Cell 2020; 182:73-84. PMID: 32425270

Ejemel M, Li Q, Hou S, et al. A cross-reactive human IgA monoclonal antibody blocks SARS-CoV-2 spike-ACE2 interaction. Nat Commun. 2020; 11:4198. PMID: 32826914

Liu L, Wang P, Nair MS, et al. Potent neutralizing antibodies against multiple epitopes on SARS-CoV-2 spike. Nature 2020; 584:450-6. PMID: 32698192

Pinto D, Park Y-J, Beltramello M, et al. Cross-neutralization of SARS-CoV-2 by a human monoclonal SARS-CoV antibody. Nature 2020; 583: 290-5. PMID: 32422645

Wrapp D, Wang N, Corbett KS, et al. Cryo-EM structure of the 2019-nCoV spike in the prefusion conformation. Science 2020; 367:1260-1263. PMID: 32075877

Yan R, Zhang Y, Li Y, Xia L, Guo Y, Zhou Q. Structural basis for the recognition of SARS-CoV-2 by full-length human ACE2. Science 2020; 367:1444-1448. PMID: 32132184
