RB139, RB140, RB141 and RB142 antibodies recognize human citrullinated LL37 by ELISA


  • Raffaella Palazzo
  • Immacolata Pietraforte
  • Carlo Chizzolini
  • Roberto Lande
  • Loredana Frasca




LL37 is a natural antibiotic, active against bacteria and fungi and some viruses. Here we show that three monoclonal antibodies (RB139, RB141, and RB142) are exclusively specific for citrullinated LL37, whereas RB140 recognizes both native LL37 and cit-LL37. None recognizes LL37 modified by carbamylation. These antibodies can represent previously unavailable tools to detect the presence of citrullinated LL37 in body fluids by ELISA in the course of autoimmune and infectious diseases.


Human cathelicidin antimicrobial peptide (CAP18 or FALL39, UniProt #P49913) is encoded by the human gene CAMP. The peptide LL37, which corresponds to the COOH-terminal part of the molecule (residues 134-170), represents the mature form, which exerts antimicrobial and immune-modulatory activity (Zanetti, 2005; Hancock et al., 2016). LL37 has been shown to undergo post-translational modifications (PTM), such as citrullination and carbamylation, and both PTM can change the functions of the native molecule (Kilsgård et al., 2012; Koro et al., 2016). Here we describe the production and characterization of four recombinant antibodies (RB139, RB140, RB141 and RB142) able to detect by ELISA a synthetic fully citrullinated LL37 (cit-LL37). Importantly, none of these antibodies react to carbamylated LL37 (carb-LL37).

Materials & Methods

Antibodies: ABCD_RB139, ABCD_RB140, ABCD_RB141 and ABCD_RB142 antibodies (ABCD nomenclature, http://web.expasy.org/abcd/) were produced by the Geneva Antibody Facility (http://unige.ch/medecine/antibodies/) as mini-antibodies with the antigen-binding scFv portion fused to a mouse IgG2a Fc (MRB139, MRB140, MRB141 and MRB142). HEK293 adherent cells (growing in DMEM, Gibco #11960044 supplied with 8% FBS) were transiently transfected with the vectors coding for each scFv-Fc. Supernatants (~1-5 mg/l) were collected after 5 days.

Antigen: The antibodies were raised against an N-biotinylated synthetic citrullinated LL37 (cit-LL37), where the 5 arginines were replaced by 5 citrullines (LLGDFF-Cit-KSKEKIGKEFK-Cit-IVQ-Cit-IKDFL-Cit-NLVP-Cit-TES). This peptide was also used as antigen for ELISA detection. As a negative control, an N-biotinylated scrambled LL37 sequence was used, as well as an N-biotinylated native LL37 (LLGDFFRKSKEKIGKEFKRIVQRIKD FLRNLVPRTES). Carbamylated LL37 (carb-LL37) (L*LGDFFRK*SK*EK*IG-K-EFK*RIVQRIK*DFLR NLVPRTES, in which the asterisks describe substitutions with homocitrullines) was used to exclude recognition of carb-LL37 (Koro et al., 2016).

Protocol: The whole procedure was carried out at room temperature. Biotinylated peptides at saturating concentration (10 pmol/well) were immobilized on streptavidin-coated ELISA plates (Pierce #15124) for 30 min. Each well was rinsed three times with 100 μl of washing buffer (PBS + 0.5% (w/v) BSA + 0.05% (w/v) Tween20), then incubated for 1 hour with 50 µl of each MRB antibody-containing supernatant diluted in washing buffer (Fig. 1). After rinsing 3 times (100 µl washing buffer), wells were incubated with horseradish peroxidase-coupled goat anti-mouse IgG (Bio-Rad #170-6516, dilution 1:1000, 50 μl per well) for 30 min. After 3 rinses, Tetramethylbenzidine (TMB) substrate (Sigma #T5569) was added (50 μl per well). The reaction was stopped by the addition of 25 μl of 2 M H2SO4. The absorbance (OD) was measured at 450 nm, and the absorbance at 570 nm was subtracted. For comparing reactivity of the antibodies to cit-LL37 and carb-LL37, non-biotinylated native LL37, cit-LL37 and carb-LL37 were directly coated on ELISA plates (Costar) and the procedure carried out as above.


Antibodies RB139, RB140, RB141 and RB142 bound in a concentration-dependent manner to cit-LL37, but not to the negative control scrambled peptide (Fig. 1). Only RB140 showed significant binding to the native unmodified LL37 (Fig. 1). However, none of the antibodies reacted to carb-LL37 (Fig. 2). This is important in that the two PTM types are similar: for cit-LL37, the arginines are substituted by citrullines; for carb-LL37, leucine/lysines are substituted by homocitrullines, and the two substitution amino acids have very similar structures (Kilsgård et al., 2012; Koro et al., 2016). Thus, these antibodies can represent important tools for studying citrullination of LL37, avoiding confusion with carbamylation of the same protein. Of note, naturally occurring antibodies to citrullinated proteins are in general very likely to be cross-reactive between the citrullinated and carbamylated forms (Kissel et al., 2020). RB142 has since been shown to recognize citrullinated LL37 in human tissue by immunofluorescence and immunohistochemistry (Lande et al., 2020).

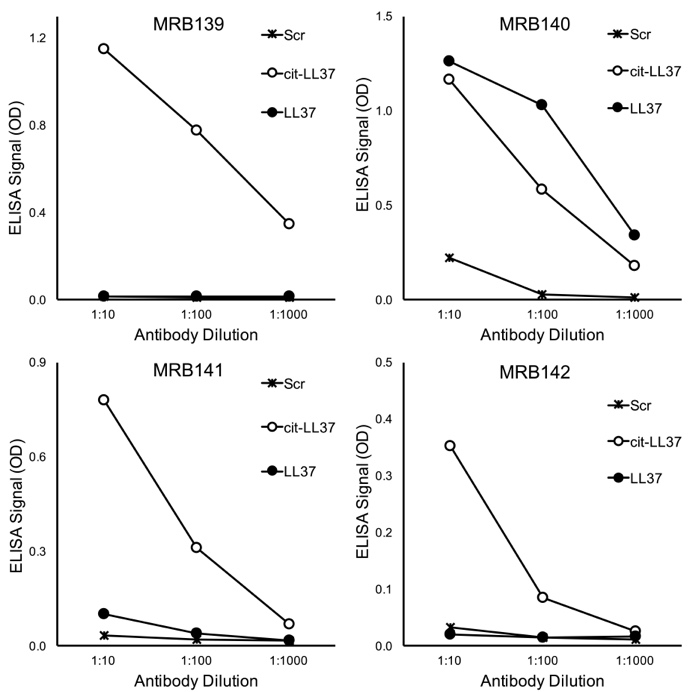

Figure 1. Specific binding of RB antibodies to the target citrullinated LL37 peptide (cit-LL37), as detected by ELISA. ‘Scr’ indicates binding to scrambled LL37 and ‘LL37’ to native LL37.

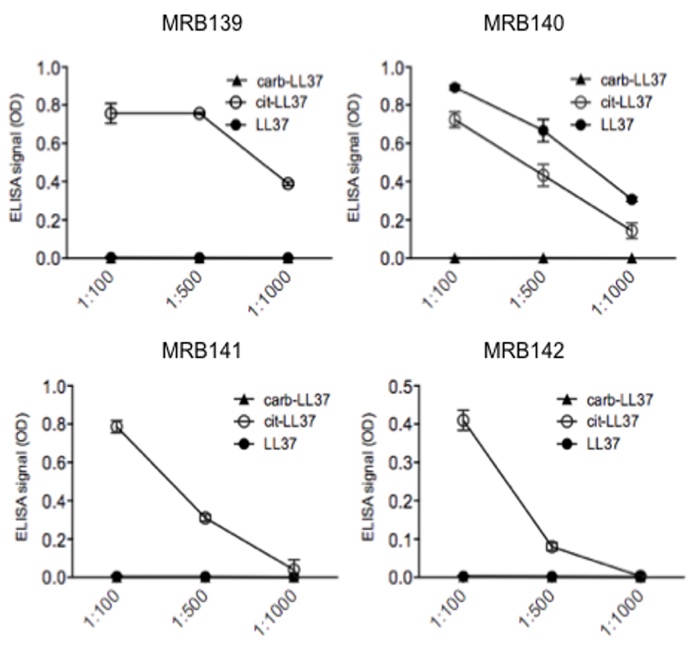

Figure 2. Specific binding of RB antibodies to the target citrullinated LL37 peptide (cit-LL37), as detected by ELISA. ‘LL37’ indicates binding to native LL37 and ‘carb-LL37’ to carbamylated LL37.

Conflict of interest

The authors declare no conflict of interest.


This work was supported by the following grants: Carlos and Elsie de Reuter Foundation, Centre Médical Universitaire, Geneva, Switzerland to L.F.; Ernst et Lucie Schmidheiny Foundation, Geneva, Switzerland to L.F; Swiss National Found to C.C. (grant 310030–159999); and National Psoriasis Foundation, USA (2019–2021) to L.F.


Hancock RE, Haney EF, Gill EE. The immunology of host defence peptides: beyond antimicrobial activity. Nat Rev Immunol. 2016; 16:321-34. PMID: 27087664.

Kilsgård O, Andersson P, Malmsten M, et al. Peptidylarginine deiminases present in the airways during tobacco smoking and inflammation can citrullinate the host defense peptide LL-37, resulting in altered activities. Am J Respir Cell Mol Biol. 2012; 46:240-8. PMID: 21960546

Kissel T, Reijm S, Slot LM, et al. Antibodies and B cells recognising citrullinated proteins display a broad cross-reactivity towards other post-translational modifications. Ann Rheum Dis. 2020; 79:472-480. PMID: 32041746.

Koro C, Hellvard A, Delaleu N, et al. Carbamylated LL-37 as a modulator of the immune response. Innate Immun. 2016; 22:218-29. PMID: 26878866

Lande R, Palazzo R, Gestermann N, et al. Native/ citrullinated LL37-specific T-cells help autoantibody production in Systemic Lupus Erythematosus. Sci Rep. 2020; 10:5851. PMID:32245990

Zanetti M. The role of cathelicidins in the innate host defenses of mammals. Curr. Issues Mol. Biol. 2005, 7:179-196. PMID:16053249
