The RB008 antibody does not recognize D. discoideum NoxA by western blot


  • Florence Leuba
  • Thierry Soldati



The recombinant antibody RB008 does not detect by western blot the Dictyostelium discoideum protein NoxA expressed in D. discoideum and in two human cell-lines.


Materials & Methods

Antibodies: ABCD_RB008 (ABCD nomenclature, was produced by the Geneva Antibody Facility ( as a mini-antibody with the antigen-binding scFv fused to a rabbit IgG Fc. HEK293 adherent cells (growing in DMEM, Gibco 11960044, supplied with 8% FBS) were transiently transfected with the vector coding for the scFv-Fc. Supernatant (~1-5 mg/L) was collected after 5 days.

Antigen: The antibodies were originally raised against a GST protein C-terminally fused to the residues 2-19 (RLPTKEEIQRYWVNEGNK) of the NoxA protein.

Protocol: D. discoideum and human cells (HEK293 and the PLB-985 [CGD] cell line differentiated in neutrophils [Pedruzzi et al., 2002]) were collected, washed in Sorensen-120 mM Sorbitol, counted and resuspended as to have 1x107 cells/600µl in RIPA solution (20 mM Tris HCl pH 7.5, 150 mM NaCl, 0.1% SDS, 5 mM EDTA, 0.5% sodium deoxycholate, 1% triton X-100, 1x proteinase inhibitor cocktail [Sigma-Aldrich 11873580001]), mixed and incubated 30 min on ice. Cells were centrifuged and the supernatant was recovered. Protein content was measured by the Bradford assay. The samples were resuspended in 1x Laemmli Buffer (125 mM Tris pH 6.8, 4% (w/v) SDS, 20% glycerol, 0.01% (w/v) bromophenol blue, 10 mM DTT). 25 µg of each sample was migrated (50 V stacking and 150 V running, 1h30) in an 8% homemade acrylamide gel and transferred to a nitrocellulose membrane (Amersham, Protran GE10600002) in 25 mM Tris, 192 mM glycine, 20% MeOH, 0.01% SDS at 4 °C, 30 V, 16 h. After checking transfer by Ponceau Red staining, the membrane used for the recombinant antibody was blocked during 1 hour in PBS containing 5% (w/v) BSA (bovine serum albumin fraction V, pH 7.0 [SERVA Electrophoresis GmbH 11930]) and the second membrane to be probed with anti-GFP was blocked during 1 hour in PBS containing 5% (w/v) milk (GE Healthcare RPN418), 0.2% (w/v) Tween20. The first membrane was then incubated with RB008 (dilution 1:2 in PBS and 3% (w/v) BSA) and the second membrane with anti-GFP antibody (Abmart, M20004M, dilution 1:1000 in PBS with Tween and 3% (w/v) milk), overnight at 4 °C, then washed three times for 10 minutes in PBS with or without Tween. The membrane probed with the recombinant anti-NoxA antibody was then incubated during 1 h with goat anti-rabbit coupled to horseradish peroxidase (BioRad) in PBS and 3% (w/v) BSA) and anti-GFP with goat anti-mouse IgG coupled to horseradish peroxidase (Brunschwig, dilution 1:10’000 in PBS-Tween 3% (w/v) milk) and washed three times for 10 minutes in PBS with or without Tween. The signal was revealed by enhanced chemiluminescence (ECL) (Amersham Biosciences RPN2232) using a Fusion Fx device (Vilbert Lourmat).


The RB008 antibody directed against the D. discoideum NoxA was tested on lysates from D. discoideum Ax2-214 (Watts and Ashworth, 1970). ΔNoxABC cells, which lack all three Nox isoforms, were used as negative control (Zhang et al., 2016), and Ax2-214 cells overexpressing the NoxA-GFP fusion protein as positive control. In addition, the antibody was tested on lysates from human cells, in which the native NoxA protein, codon-optimized for expression in human, was expressed using a lentiviral vector. The commercial anti-GFP recognized the tagged NoxA-GFP protein (Fig. 1) and also recognized nonspecifically a protein of approximately 80 kDa (asterisk), in D. discoideum lysates. The antibody RB008 recognized neither the GFP-tagged protein in D. discoideum cells nor the native untagged protein in human cells (Fig. 1). The RB008 antibody only recognized nonspecific background proteins.

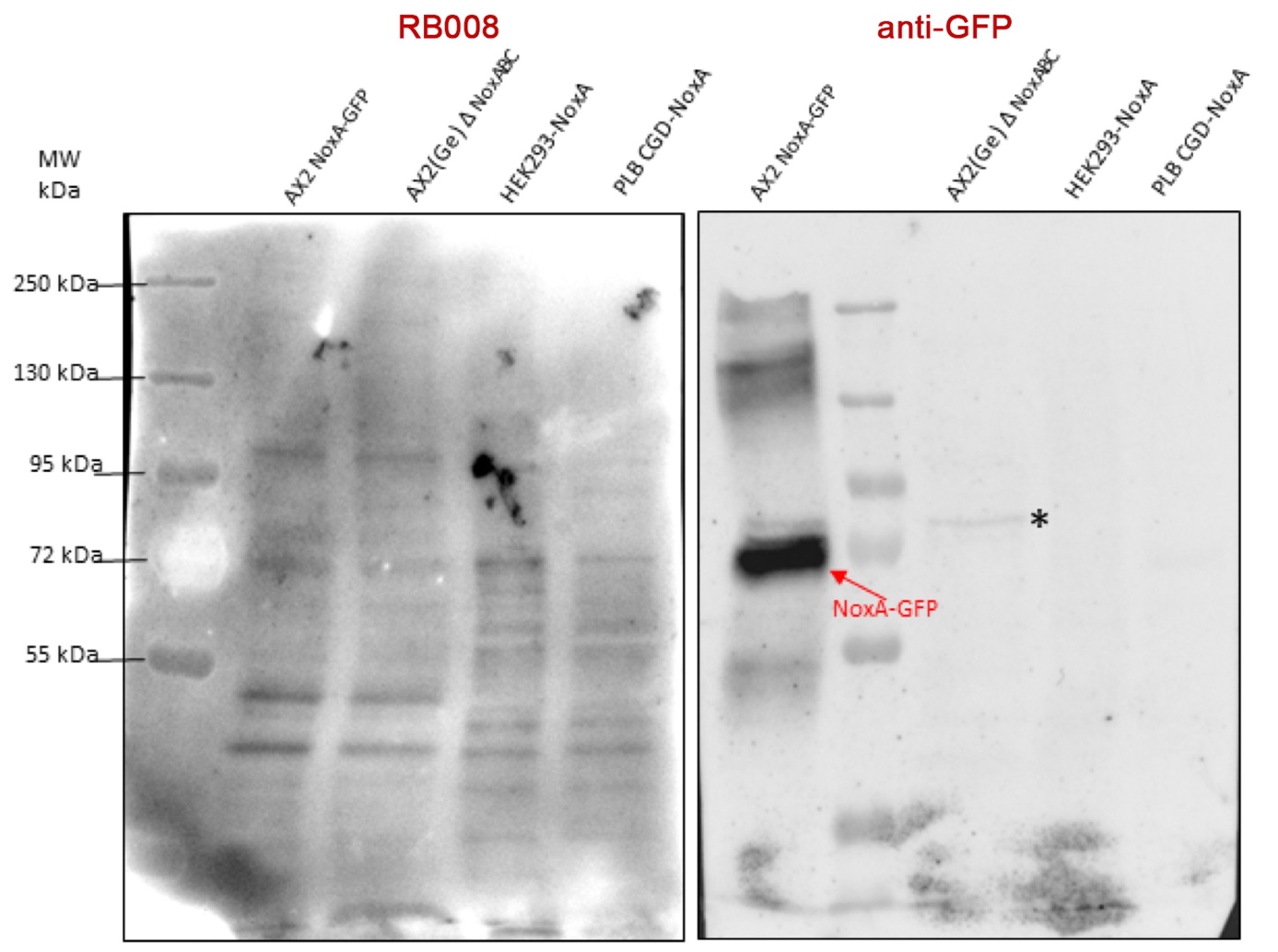

Figure 1. Western blot on lysates from wild type D. discoideum Ax2-214 cells expressing NoxA-GFP, Ax2-214 ΔNoxABC cells (as negative control), and human HEK293 or PLB-985 (CGD) expressing untagged NoxA. Membranes were incubated with the indicated antibodies. The commercial anti-GFP antibody was used as a positive control. Endogenous NoxA has an expected size of ~60 kDa, and NoxA-GFP of ~85 kDa.

Conflict of interest

The authors declare no conflict of interest.


Dunn JD, Bosmani C, Barisch C, et al. Eat, prey, live: Dictyostelium discoideum as a model for cell-autonomous defenses. Front Immunol. 2018; 8:1906. PMID:29354124

Pedruzzi E, Fay M, Elbim C, Gaudry M, Gougerot-Pocidalo MA. Differentiation of PLB-985 myeloid cells into mature neutrophils, shown by degranulation of terminally differentiated compartments in response to N-formyl peptide and priming of superoxide anion production by granulocyte-macrophage colony-stimulating factor. Br J Haematol. 2002; 117:719-26. PMID:12028049

Watts DJ, Ashworth JM. Growth of myxameobae of the cellular slime mould Dictyostelium discoideum in axenic culture. Biochem J. 1970; 119:171-4. PMID:5530748

Zhang X, Zhuchenko O, Kuspa A, Soldati T. Social amoebae trap and kill bacteria by casting DNA nets. Nat Commun. 2016; 7:10938. PMID:26927887






How to Cite

Leuba F, Soldati T. The RB008 antibody does not recognize D. discoideum NoxA by western blot. Antib. Rep. [Internet]. 2020 May 20 [cited 2024 Apr. 21];3(3):e190. Available from:
