Pantanal Basin river muds from source to sink: compositional changes in a tropical back-bulge depozone

Abstract

The Pantanal Basin is a low-gradient back-bulge analog for distal depozones associated with retroarc foreland basin systems in the geological record. Extensive lowland environments including fluvial megafans, floodplains, wetlands, and lakes make up the Pantanal Basin today, with detrital sediment sources located along basin-margin plateaus and remnants of ancient orogenic belts. Here, we examine the chemical composition and mineralogy of modern fine-fraction fluvial sediments using X-ray methods to assess the influence of chemical weathering on sediment composition in this tropical basin. The abundance of clay minerals follows the rank order pattern of kaolinite > vermiculite > illite > smectite. Kaolinite is more abundant in river muds from the north-central than the southern Pantanal, suggesting strong extant chemical weathering plus the potential for clays inherited from siliciclastic parent lithologies that formed under Mesozoic greenhouse conditions. Illite occurs in sediments draining the North Paraguay Belt and limited parts of the South Paraguay Belt, and it reflects the influence of mechanical weathering of the metamorphic facies. In the southeastern Pantanal, vermiculite is a dominant constituent of the Miranda River watershed, which drains dacitic parent rocks and rhodic ferralsols. The geochemistry of the sediments reveals the interplay of quartz addition and clays inherited from the parent rocks. The most quartzose sediments are encountered at the confluence of the Paraguay River and the Taquari River megafan, where the cumulative effect of the 2 – 3-month flood pulse maximizes chemical weathering. Clay plus silt in back-bulge basins are controlled by climate > soils > parent rocks.

Resumo

A Bacia do Pantanal é um sistema sedimentar de baixo relevo na região de back-bulge análoga no registro geológico a outros ambientes deposicionais associados com sistemas de retroarco. A hidrografia da Bacia do Pantanal inclui mega leques fluviais, planície de inundação, áreas alagadiças e lagos, com fontes de detritos provenientes das margens do planalto e resquícios de cinturões orogênicos pré-Cambrianos. Neste estudo, analisou-se a composição química e a mineralogia da fração fina de sedimentos fluviais modernos com métodos de raios-X para avaliar a influência do intemperismo químico na composição dos sedimentos nesta bacia tropical. A abundância de minerais de argila segue o padrão de ordem de caulinita > vermiculita > ilita > esmectita. A caulinita é mais abundante nos sedimentos fluviais do centro-norte do que no sul do Pantanal, o que sugere forte intemperismo químico recente além do potencial de argilas herdadas de fontes sedimentares siliclásticas formadas em condições de “greenhouse” durante a Era Mesozoica. A ilita ocorre em sedimentos que drenam a Faixa Norte do Paraguai e partes limitadas na Faixa Sul do Paraguai, refletindo a influência do intemperismo mecânico das fácies metassedimentares. No sudeste do Pantanal, a vermiculita é um constituinte dominante da bacia do Rio Miranda, que drena rochas-fonte dacíticas e latossolos vermelhos. A geoquímica dos sedimentos revela a interação entre a adiação de quartzo e as argilas herdadas das rochas-fonte. Os sedimentos quartzosos são mais frequentes na confluência do Rio Paraguai com o mega leque do Taquari onde o efeito cumulativo do pulso de inundação (2 a 3 meses) maximiza o intemperismo químico. Este estudo revela que a argila e o silte que preenchem bacias de back-bulge são controlados pelo clima > solos > rochas-fonte.

Lay summary

The compositional controls on clays and silts in tropical rivers of the Pantanal Basin distant from the Andes remain unclear. We collected 74 modern riverbank samples and used X-ray techniques to determine clay mineralogy and chemical elemental composition. The most common clay minerals in rank order of abundance were kaolinite > vermiculite > illite > smectite. Kaolinite was dominant in the north-central Pantanal, whereas vermiculite was dominant in the southeastern Pantanal. The most quartzose clays and silts were found in the middle Paraguay River. Pantanal clays are controlled first by climate, and secondarily by soils.

1. Introduction

Modern sands, silts and clays in large watersheds have been studied to reveal the interactions among parent lithology, climate, and tectonics that influence sediment composition (Johnsson, 1993; Jonell et al., 2017; He et al., 2020; Garzanti et al., 2021). For instance, quartz enrichment and kaolinite abundance in lowland settings or intense mechanical weathering on hillslopes are often linked to hot, humid conditions characteristic of the tropics (Oliva et al., 1999; Viers et al., 2000; Aristizábal et al., 2005; Garzanti et al., 2019). Tardy et al. (1973) show that montmorillonite can also be concentrated in the lowlands downstream of granites in humid tropical environments. These diverse floodplain clay mineral compositions suggest that considerable variability surrounds clay mineral development in tropical floodplains. Although studies on clay minerals have been conducted worldwide (e.g., Chamley, 1989), the relationships among fluvial transport, climate, tectonics, and chemical weathering on clay mineralogy are site-specific and require localized sediment sampling. Modern fluvial sediment compositions have not been systematically assessed in many South American rivers, with limited research focused on the composition of the suspended sediment load in a few major rivers (Potter, 1994; Guyot et al., 2007; McGlue et al., 2016; Repasch et al., 2020).

Climate gradients are essential controls on the weathering of clay minerals and impact regional vegetation and agricultural production. When hydrolysis is inefficient or incomplete, feldspar minerals persist along with Ca²⁺ and Na⁺, as was observed along the Zambezi River system (Garzanti et al., 2022). No clay minerals may be observed in exceptionally arid conditions (e.g., Warr et al., 2022). Where the climate is warm and humid, the 1:1 type clays are predominant with greater kaolinite compared to illite/mica in the clay (<2 µm) fraction (Ito & Wagai, 2017). These large-scale trends have been documented and used for understanding the chemical weathering processes globally. Changes to the clay mineral assemblage and fine fraction geochemistry along the Pearl River and the Red River were dominantly controlled by climate gradients (He et al., 2020, 2022). However, none of these have examined modern fluvial clays within a primarily floodplain or wetland environment. Garzanti et al. (2011) provided the most comprehensive study of floodplain clays on the Indian sub-continent, within the Ganges-Brahmaputra foreland basin system.

Parent lithology is a secondary determinant of modern clay minerals. Guyot et al. (2007) examined clay minerals across the Amazon Basin and found that the provenance of the areas (shield, Andean cordillera, Piedmont basins) determined the clay mineral constituents. For example, the illite and chlorite reflected erosion of the metapelites and metabasites exposed in the Red River basin (He et al., 2022). Kaolinite can originate from virtually any parent rock, given warm and humid environments typical of the tropics (Dill, 2016). Tropical and sub-tropical climates commonly result in an under-representation of mafic lithologies relative to their areal extent in modern fluvial sediments (Garzanti et al., 2014; Hatzenbühler et al., 2022).

Mud composition can reflect differences between transport-limited erosion and weathering-limited erosion depending on the land surface gradient and hydrology (Stallard et al., 1991). Sediment erosion can be considered transport-limited, where weathering creates more clays than can be transported, resulting in profoundly weathered soil profiles (Stallard et al., 1991). Plateaus and floodplains are emblematic of transport-limited erosional regimes where the sediments and soils remain in place, subjected to prolonged chemical weathering. Weathering-limited erosion occurs when the bedrock is partially weathered before the sediment is removed, concentrating micas and feldspars (Stallard et al., 1991). Cordilleras erode physically through rockfalls and the breakdown of the rock formation, exacerbated by high slopes. Further understanding of these and other source-to-sink processes requires a close examination of weathering intensity, as recorded in clay mineral composition and elemental geochemistry (He et al., 2020; Cruz et al., 2022).

Back-bulge basins are an ideal locale to examine how changes in environmental conditions affect clay mineral production in tropical riverine settings. Back-bulges are usually low-gradient zones that store sediment and preserve important environmental signals over geologic time (Horton & DeCelles, 1997; Assine et al., 2016; Brewer et al., 2020; Caracciolo, 2020). Silt plus clay preservation is excellent in low-gradient back-bulge depositional environments (e.g., in floodplains, lakes, and wetlands) (Quartero et al., 2015; McGlue et al., 2016; Tineo et al., 2022). Therefore, one of the motivations of this research is to examine the processes that control mud mineralogy and chemistry in a modern tropical setting where the environmental gradients (i.e., climate, soils, vegetation, relief) are relatively well-understood in order to provide insights that may improve interpretations of the geological record. We selected the Pantanal Basin as an exceptional locale to examine the primary sedimentary processes. The Pantanal Basin (Brazil/Bolivia/Paraguay) forms the back-bulge depozone of the Cenozoic Andean foreland basin (Chase et al., 2009; Cohen et al., 2015; Horton, 2022). The Pantanal is a tropical savanna extending from the Amazon drainage divide to the Brazilian border with Paraguay (Figure 1A) (Beck et al., 2018). Most hinterland (i.e., basin margin) lithologies surrounding the Pantanal are siliciclastic sedimentary rocks, with some pre-Cambrian igneous and metamorphic exposures; these lithologies were recently grouped into six provenance regions (Figure 1B, C; Lo et al., 2023).

In this study, modern muds in the rivers of the Pantanal were collected to evaluate their mineralogy and chemical composition. We employed X-ray diffraction (XRD) for semi-quantitative clay mineralogy and wavelength-dispersive X-ray fluorescence (WD-XRF) to deduce major elemental geochemistry (Moore & Reynolds, 1989). These data were analyzed along with environmental characteristics of the basin’s sub-watersheds (e.g., slope, lithology, precipitation, elevation) to elucidate the processes that control clay composition. We tested the hypothesis that differences in mean annual precipitation control the clay mineral assemblage in modern fluvial silt plus clay in the Pantanal. This article is a companion study to a petrographic analysis of contemporary river sands in the Pantanal (Lo et al., 2023), with the end goal of identifying major patterns in sediment generation and transport in this basin. Plata River samples were integrated with this study to evaluate the influence of Pantanal Basin clay composition on downstream sediments. Ultimately, our objective is to improve interpretations of ancient sedimentary rocks in similar settings through a detailed set of modern observations and a database of mineralogical and chemical measurements.

Figure 1. (A) Upper Paraguay River Basin (white outline) in South America. Red box denotes area shown in panel C. (B) Pantanal Basin provenance regions with major rivers (dark blue lines). Much of the areas covered at the surface by wetlands are designated as lowlands, in contrast with the fringing cratons and the plateau. White circles represent all sampling stations listed in Table S1. (C) GTOPO30 digital elevation model of South America (USGS, 1996), including a topographic cross-section A – A’ from Google Earth^TM. Modified from Lo et al. (2023).

2. Geological setting of the Pantanal Basin

The Cenozoic Pantanal Basin formed from flexure of the crust as the Andes range arose from the subduction of the Pacific plate beneath the South American plate (Horton & DeCelles, 1997; Assine et al., 2016). The Pantanal Basin has accumulated ~500 m of sediment, with the depocenter located near the geographic center of the basin in the area of the Taquari River (Ussami et al., 1999). The Pantanal Basin is occupied by large distributary fluvial systems also known as fluvial megafans (Assine, 2005; Zani et al., 2012; Hartley et al., 2013; Weissmann et al., 2015). Unconsolidated sediments fill the lowlands, which span ~150,000 km² within the Upper Paraguay River watershed covering ~465,000 km² of Brazil, Bolivia and Paraguay. The Pantanal Basin can be divided into six hinterland provenance regions: lowlands, Amazon craton, Rio Apa craton, plateau, and the South and North Paraguay Belt (Lo et al., 2023) (Figure 1B). Bedrock in the northwestern Pantanal consists of Amazon craton, with granites, granodiorites, schists, and dikes of quartz-diorite and quartz-gabbro making up the bedrock (Figure 2A) (Rizzotto & Hartmann, 2012; Horbe et al., 2013; Braga et al., 2019). The Rio Apa craton in the southwestern Pantanal consists of gneisses, granites, granodiorites, amphibolites, schists, and quartzites (RadamBrasil, 1982; Alvarenga et al., 2011). The plateau region hosts Phanerozoic sedimentary rocks derived from the Paraná Basin: the Aquidauana Formation (arenites, diamictites, siltites, shales), Botucatu Formation (aeolian-sandstones), Serra Geral Formation (basalts), Caiuá Group (arenites), and Paraná Group (shales, siltites, arenites, arkose) (Lacerda Filho et al., 2004; 2006). The South Paraguay Belt hosts phyllites, schists, metarenites, quartzites, and dolomitic and calcitic marble in the Serra da Bodoquena. The North Paraguay Belt includes the Província Serrana, with phyllites, schists, limestones, siltites, and arenites (RadamBrasil, 1982). The point of highest elevation is 1260 m above sea level (m.a.s.l.) on the eastern plateau, and the lowest point is 70 m.a.s.l. at the basin outlet near the confluence of the Apa and Paraguay Rivers (Figure 1C).

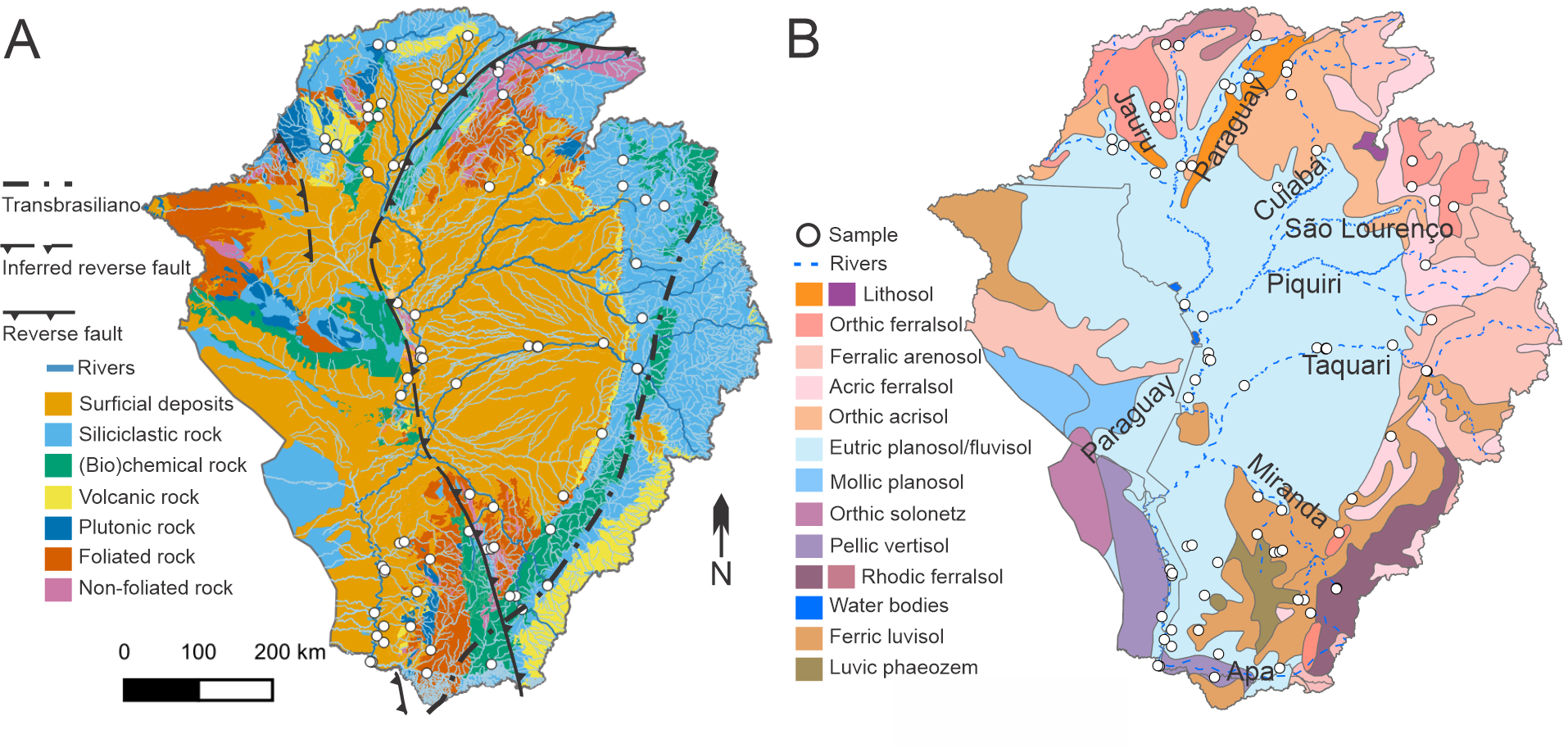

Figure 2. (A) Geology of the Pantanal Basin and drainage network, with major faults. The plateau provenance region is dominated by siliciclastic sedimentary rocks, whereas metamorphic rocks are restricted to the cratons and Paraguay Belt. (B) Soil map for the Pantanal Basin (FAO, 1971). The most widespread soil classes are eutric planosol/fluvisol in the lowlands (Benedetti et al., 2011). Geologic information was obtained for Bolivia (Dirección de Ordenamiento Territorial, Gobierno Autónomo Departamental de Santa Cruz), Paraguay (Vice Ministerio de Minas y Energía), and Brazil (Serviço Geológico do Brasil, CPRM). Faults are based on published studies (Rizzotto & Hartmann, 2012; Warren et al., 2015; Faleiros et al., 2016; Barboza et al., 2018; Rivadeneyra-Vera et al., 2019; Cedraz et al., 2020). White circles represent all sampling stations listed in Table S1. Modified from Lo et al. (2023).

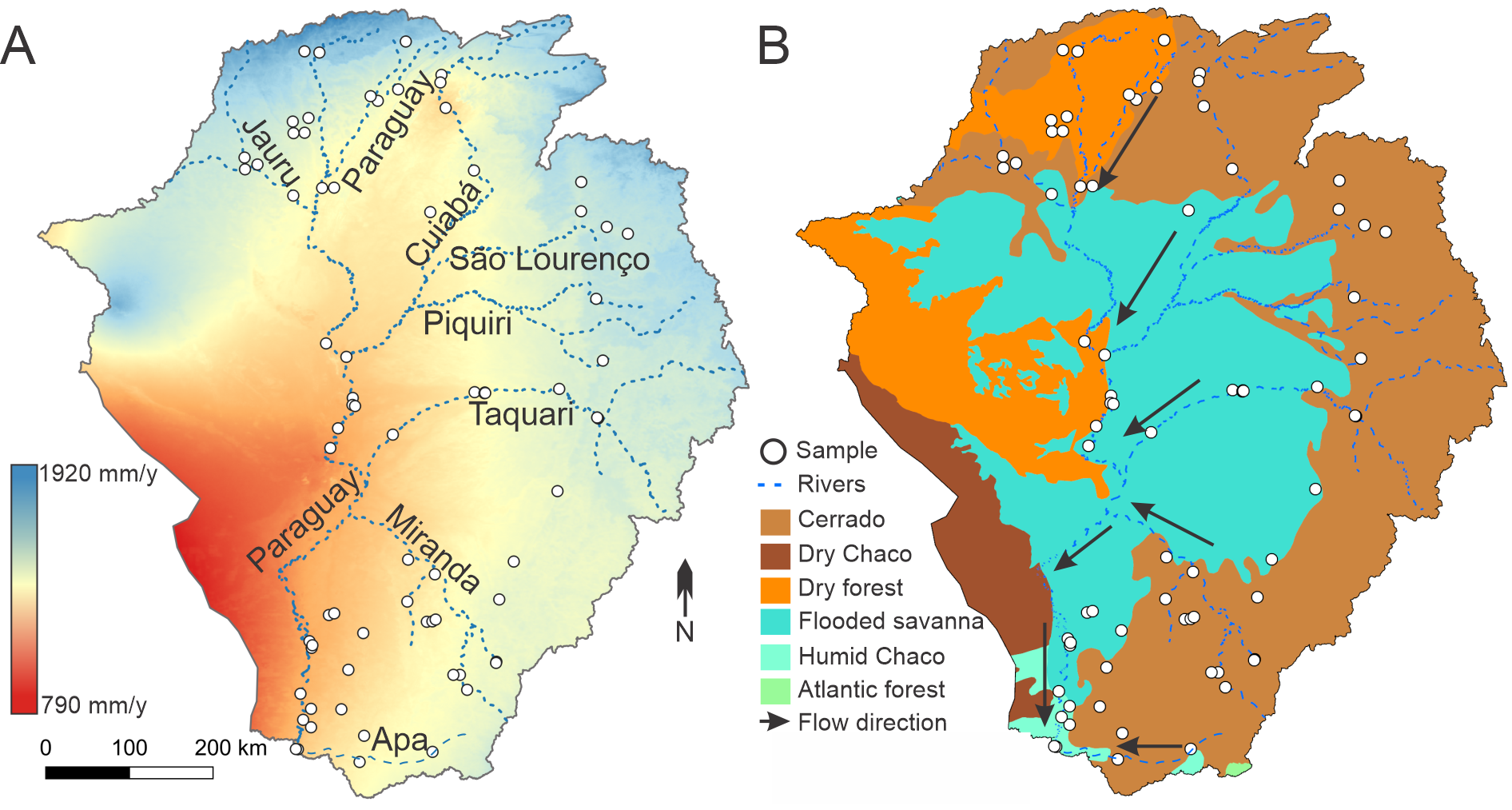

Figure 3. (A) Mean annual precipitation (mm/y) from the WorldClim database (Fick & Hijmans, 2017). In the Brazilian Pantanal, the precipitation is 970 – 1850 mm/y. (B) Vegetation ecoregions regions of the Pantanal Basin (Olson et al., 2001). The primary vegetation of the Pantanal consists of flooded savanna and cerrado (tropical savanna). White circles represent all sampling stations listed in Table S1. Modified from Lo et al. (Lo et al., 2023).

The hydrologic configuration of the Pantanal is responsible for the diversity of lowland environments and the contrast between wet-dry seasons (Figure 3A). The Paraguay River flows along the basin’s western margin and is the trunk river of the Pantanal. The Paraguay River is joined by the Jauru River west of the Província Serrana in the North Paraguay Belt provenance region. The Cuiabá River discharges into the Paraguay River at 17.9°S latitude, followed by the Taquari River’s numerous distributary channels discharging just north of 19°S latitude. The Miranda River joins the Paraguay River at ~19.4°S latitude. The Paraguay River flows along the Rio Apa craton between 21°S and 22°S latitude before flowing out of the basin. The waters that flow to the trunk river annually depend on the migration of the Intertropical Convergence Zone, which concentrates rainfall in the months of December, January, and February and strongly influences patterns of flooding and vegetation (Ivory et al., 2019). The peak dry season occurs in June, July, and August, but the dry season varies from 1 – 2 months north of the Taquari River to 4 – 5 months south of the Taquari River (IBGE, 2002). This seasonality of rainfall coupled with the minimal gradient of the lowlands results in a flood pulse effect, because rainfall in the plateau and northern Pantanal takes 2 – 3 months to flow to the basin outlet (Junk et al., 2006). When the waters rise with the flood pulse, the suspended clay particles are delivered to the riverbanks and floodplains (e.g., Hamilton, 2002). This results in broad areas of inundation in the lowlands that lasts for several months annually. Mean annual rainfall is ~1800 mm in the northern and eastern Pantanal but diminishes to ~1200 mm along the western and southern Pantanal (Figure 3A). The average annual temperature is ~25°C basin-wide (Fick & Hijmans, 2017).

Clay minerals can be transformed in contemporary soils depending on climate, slope gradients, and vegetation (Hillier, 1995; Velde & Meunier, 2008) (Figures 2B and 3B). The soils of the Pantanal are dominated by eutric planosols and fluvisols in the lowlands, but the plateau provenance region is more variable (Figure 2B). The plateau region contains mostly ferralsols and arenosols in addition to luvisols in the south (Benedetti et al., 2011). Lithosols are present in the Província Serrana region, and the western Pantanal contains mollic planosols, rhodic ferralsols, and orthic solonetz. Figure 3B illustrates the general patterns of vegetation, but additional floral diversity relates to the spatial distribution of soil types (de Souza et al., 2021). Broadly, the soils are divided into forest formations, arboreal cerrado, herbaceous cerrado, chaco (woody steppic savanna), monodominant formations, and mixed vegetation (dos Santos Vila da Silva et al., 2021). For example, semideciduous (capão) and deciduous forests thrive in vertisols, whereas the savanna woodlands (cerradão) grow best in arenosols (de Souza et al., 2021).

3. Methods

3.1. Initial design and fieldwork

Paired sand and silt plus clay samples were collected from river margin bars in the Pantanal during the wet and dry seasons in 2019 – 2021 (Table S1). Sampling stations were chosen to maximize spatial coverage and lithological diversity and for ease of access. At several sampling stations (n = 22), accompanying hydrologic flow data was recorded at the closest available stream gauge (Table S2). Each station was treated as a pour point, which is the endpoint of a streamflow network (Gleyzer et al., 2004). Pour point analysis was completed with QGIS 3.4.6 to define each sample’s contributing watershed using Shuttle Radar Topography Mission (SRTM) digital elevation models (DEMs) from USGS EarthExplorer (https://earthexplorer.usgs.gov). Pour point analysis for watersheds > 250,000 km² was completed with 3-arc second resolution DEM (Verdin, 2017). The average watershed slope was calculated from these DEMs, whereas elevation and distance from the Paraguay trunk river were extracted from Google Earth^TM. The precipitation and temperature for each sampling station were measured from WorldClim (Fick & Hijmans, 2017) (Table S1). Soils were identified in each watershed from global FAO (1971) data and converted to the United States Department of Agriculture classification for the purposes of literature review (Deckers et al., 2003; Souza et al., 2018), and vegetation ecoregions were also identified from global data (Olson et al., 2001). We did not collect local soil profiles and document local vegetation at each sampling station, because we considered each sample to be the product of cumulative upstream processes rather than localized processes and features. Geologic data were extracted from national geologic maps (Lacerda Filho et al., 2004, 2006; SERGEOMIN, 2005; Spinzi & Ramírez, 2014) (Table S3). Seventy-four (74) distinct silt plus clay sampling stations were studied, and of these, 71 samples have mineralogy data, 66 have geochemical data, and 63 have both mineralogy and geochemistry data.

3.2. Pretreatment and XRD analyses

The silt plus clay fraction was separated by wet sieving using a 53 µm sieve. We treated each sample with 1N sodium acetate (NaOAc) with pH 5 adjusted using glacial acetic acid (HOAc) to dissolve carbonates and replace the exchange sites for Ca and Mg with Na. We used 30% hydrogen peroxide (H₂O₂) to dissolve organic matter, followed by washing once with 200 mL NaOAc and 200 mL with 1M sodium chloride (NaCl) (Jackson, 1969). To obtain the <2 µm fraction, we centrifuged the samples first at 750 rpm for 3 minutes and decanted the supernatant (liquid >2.5 cm from bottom of a 250 mL bottle) containing the <2 µm clays into a separate container for settling. The bottle was refilled with sodium carbonate (Na₂CO₃) and the process repeated until a relatively clear supernatant was achieved. The remaining material was separated as the silt fraction (2 – 54 µm). Several days to weeks were allowed for the clays to settle, and 50 mL of the clays were transferred to a centrifuge tube for freeze drying (Figure 4).

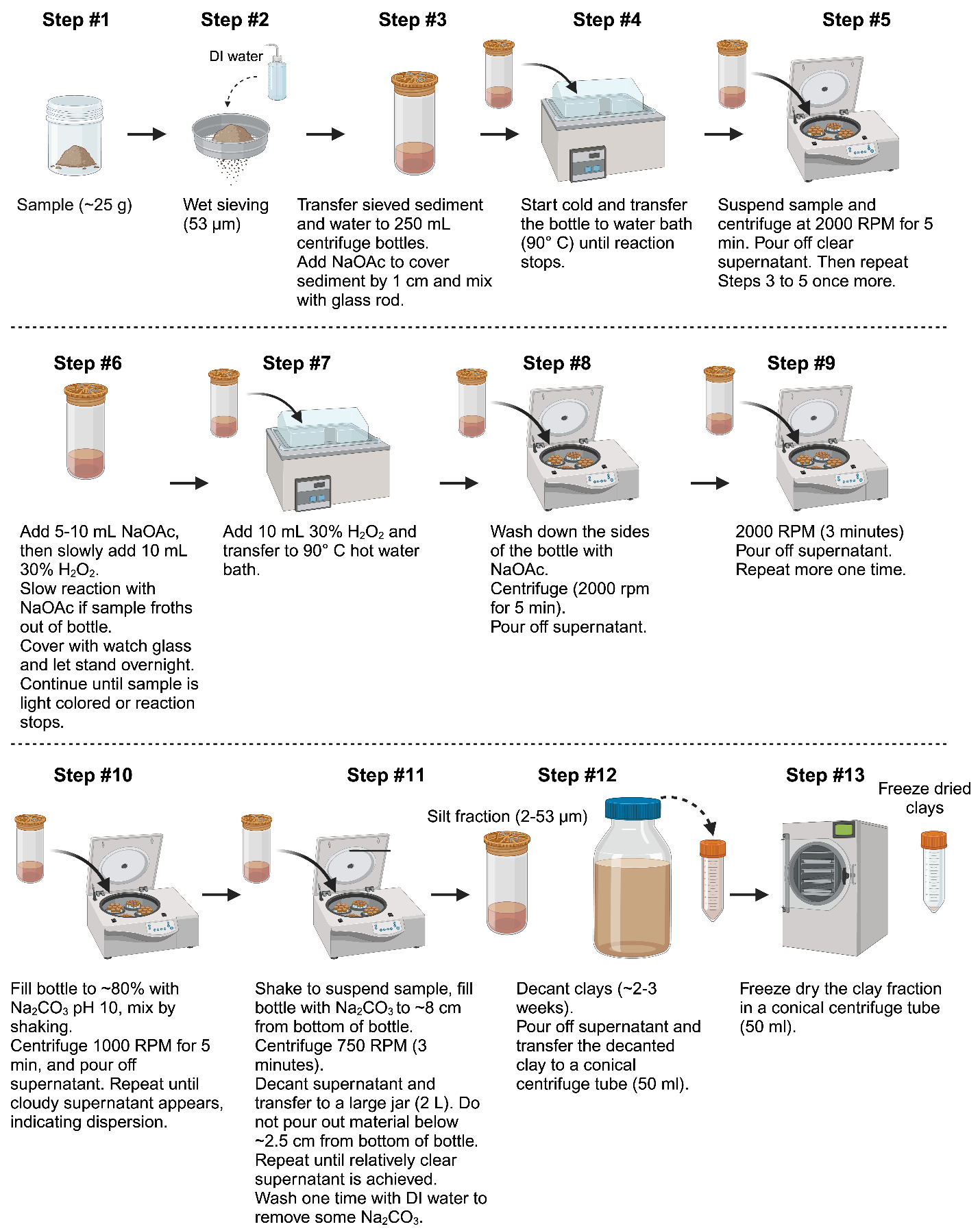

Figure 4. Flowchart created with BioRender.com that summarizes all pretreatment steps, modified from Jackson (1969). The process begins with a wet sample, dissolution of organic matter and carbonate, separation of <2 µm clays from silt (2 – 53 µm), and freeze drying of the <2 µm clays.

Oriented slides of clay fractions were prepared using the filter peel method (Drever, 1973), with diagnostic treatments of magnesium (Mg), Mg-glycerol, and a potassium (K)-saturated slide. The use of Mg-saturation and subsequent ethylene glycol is chiefly to identify smectite (Aparicio et al., 2010). The application of K-saturation is to identify vermiculite, and further heating to 550°C confirms the presence of kaolinite. Briefly, we measured 200 mg of freeze-dried clay (<2 µm) for each slide and transferred the sample to 50 mL centrifuge tubes. We added 25 mL 0.5 M magnesium chloride (MgCl₂), mixed well, and sonicated. In a separate centrifuge tube, we added 25 mL 0.5 M potassium chloride (KCl) to 200 mg of freeze-dried clay, mixed well, and sonicated. The tubes were centrifuged at 2000 rpm for 5 minutes, the supernatant was discarded, and the process was repeated twice more. We added deionized water, mixed, sonicated the sample, and poured the mixture onto a Millipore 0.45 µm membrane filter mounted to a vacuum flask. With the clay still moist, we removed the filter and placed the filter clay side down on a glass slide. We lightly rolled a 20 mL glass vial across the back of the filter as we peeled away the filter, leaving behind a uniformly thick oriented clay mount.

The mineralogy of the oriented clays was determined using XRD. A PANalytical X’Pert diffractometer with a Cu tube at 45 kV and 40 mA from 2° – 40° with a step size of 0.03° 2-theta (2θ) step size and scan step time of 10 seconds was employed for the analysis. Total scan time was ~3.5 hours for each treatment: Mg-saturated, K-saturated, Mg-glycol solvated, and K-saturated and heated (550°C). When the first two treatments were scanned, we solvated the Mg-saturated slide with glycol to identify if smectite was present, and the K-saturated slide was heated to 550°C for one hour to collapse the kaolinite structure. The major constituent clays identified in X-ray diffractograms used established 2θ peak positions (e.g., Moore & Reynolds, 1989). All data were analyzed using X’Pert HighScore software. Semi-quantitative calculation of clay mineral compositions was accomplished by multiplying the height (counts) by the full width at half maximum (FWHM, ° 2θ) in the Mg-saturated plot divided by the sum of the calculated areas for the predicted clay minerals and multiplied by 100 (Biscaye, 1965; Moore & Reynolds, 1989) (Table S4). These clay abundances were cross checked in NEWMOD II, in order to confirm the reliability of this semi-quantitative method (Yuan & Bish, 2010). Spatial interpolation of the three primary clay minerals (kaolinite, illite, vermiculite) was performed using the “Spline with barriers” tool in ArcGIS Pro 3.1.2. Smectite, goethite, and gibbsite were reported based on presence or absence at each sampling station. The iron content in illite was calculated using the intensity of the illite (001) and (002) peaks: I (001)/I (002) (Brown & Brindley, 1980; Deconinck et al., 1988; Furquim et al., 2010; Nascimento et al., 2015).

3.3. WD-XRF geochemistry

WD-XRF measurements completed with a Bruker AXS Inc. S4 Pioneer device were used to determine chemical elemental abundances for select bulk sediment samples (Table S5) and for the <53 µm fraction of samples with sufficient material (Table S6, n = 66). Eight duplicate samples were measured to assess the repeatability of the analysis. Following the loss-on-ignition protocol, each sample was heated to 550°C for four hours to remove organic matter and 950°C for two hours to remove carbonate (Heiri et al., 2001). Samples were disaggregated and homogenized in a mortar and pestle, mixed with borate flux GF-9010 (90% lithium tetraborate and 10% lithium fluoride) in an 8:1 ratio and two drops of lithium tetraborate (Li₂B₄O₇), and melted into glass discs using a Katanax X-300 or K1 automatic fusion fluxer machine. The samples were calibrated with a set of eight certified reference samples using linear regression. Molar proportions were utilized to calculate the chemical weathering indices, including the chemical index of alteration (CIA; Equation 1) and the Weathering Index of Parker (WIP; Equation 2) (Parker, 1970; Nesbitt & Young, 1982).

Equation 1 (Nesbitt & Young, 1982) CIA = 100 x Al₂O₃ / (Al₂O₃ + CaO + Na₂O + K₂O)

Equation 2 (Parker, 1970) WIP = 100 x [(2Na₂O / 0.35) + (MgO / 0.9) + (2K₂O / 0.25) + (CaO / 0.7)]

Both indices are used to determine the extent of weathering (Table S6). Equation 1 (CIA) indicates the extent of feldspar-to-clay conversion, whereas Equation 2 (WIP) measures proportions of alkali and alkaline earth metals, which is suitable for weathering of heterogeneous metasedimentary lithologies (Price & Velbel, 2003). The WIP acts as an index of quartz recycling, whereas the CIA is unaffected by quartz dilution. Calculating the ratio of CIA to WIP allows us to differentiate between weathering and quartz recycling (Garzanti et al., 2019). The weathering indices were spatially interpolated using the “Spline with barriers” tool and classified using geometric intervals in ArcGIS Pro 3.1.2. We evaluated the influence of source rock composition on fine-fraction sediment chemistry using ACN, ACNK, ACNKFM plots and molar proportions of the major elements (Nesbitt & Young, 1984; Nesbitt & Wilson, 1992; Fedo et al., 1995).

We examined environmental controls on clay mineralogy and chemistry using canonical correspondence analysis (CCA). The key advantage for using CCA was to distinguish how the environmental variables and major elements affected both the clay abundance and the sampling stations. We also explored other ordination analyses to examine their effectiveness in explaining the distribution of clay minerals in the Pantanal Basin. Finally, we measured pH for a representative set of sediment samples from each region, treating each sample as a 1:2 soil/0.01 M CaCl₂.

4. Results

4.1. Basin-wide c lay mineralogy

At basin-scale, the rank order of clay mineral abundance is kaolinite > vermiculite > illite > smectite (Table S4). Kaolinite was determined to be present if the 7 Å diagnostic (001) peak collapsed when the K-saturated slide was heated to 550°C for one hour. Illite was identified at 10 Å for the (001) peak and 5 Å for the (002) peak. Smectite was identified on the basis of the 14 Å diagnostic peak shifting to 18 Å following Mg-glycerol (Figure 5). Vermiculite was distinguishable from smectite where the 14 Å peak did not shift to 17 – 18 Å following Mg-glycerol treatment. We identified goethite at the (110) peak at 4.18 Å and gibbsite at the (002) peak at 4.85 Å (Moore & Reynolds, 1989). The Cuiabá, Taquari, and Paraguay River muds are particularly enriched in kaolinite, representing >50% of the clay mineral composition (Figure 6). Substantial in-channel compositional variability was observed in the Taquari River, which is fed by two large tributary rivers carrying 71% kaolinite and 43% kaolinite in the plateau (see Calibrated XRD data section of Supplementary Materials).

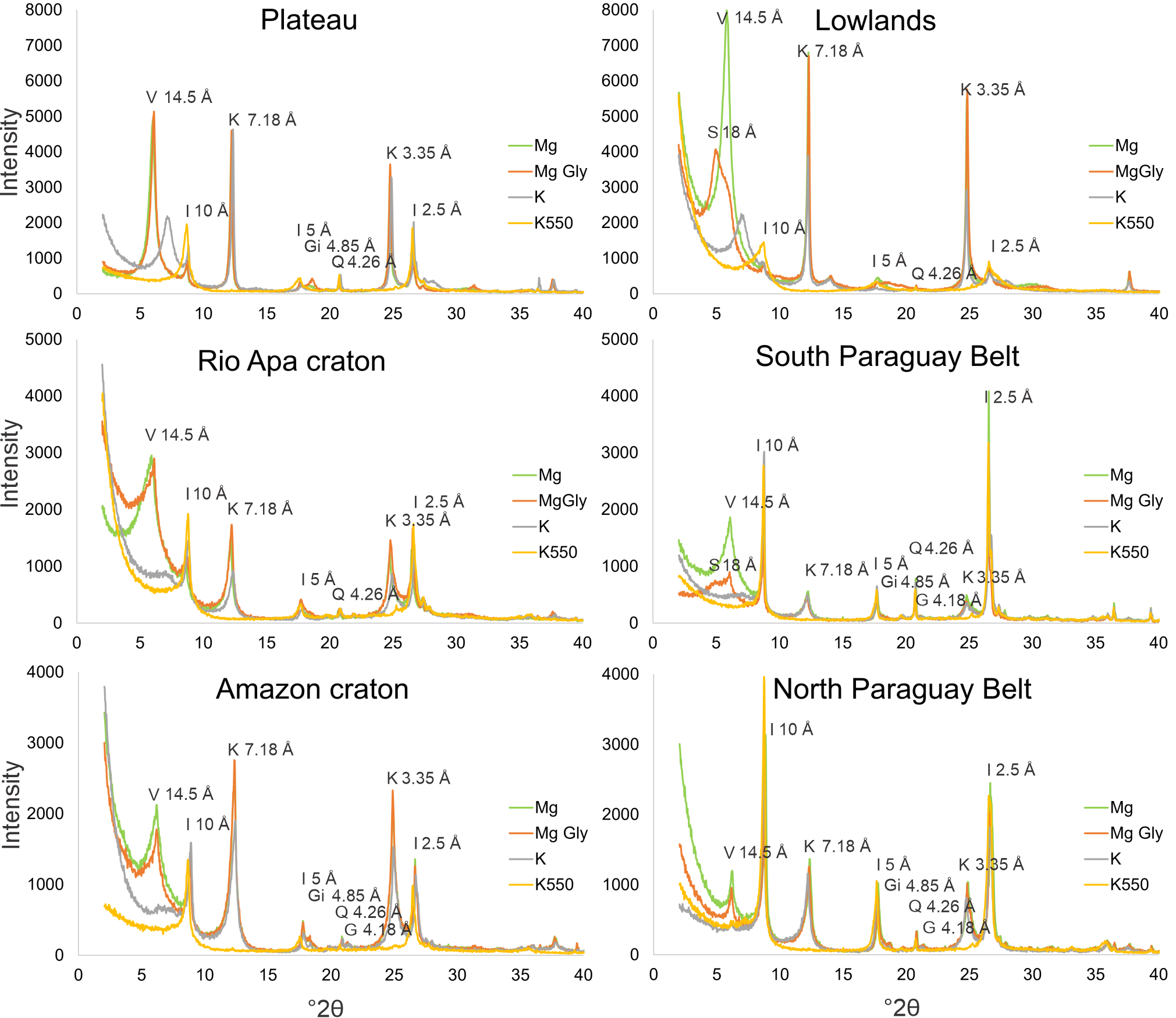

Figure 5. Representative x-ray diffractograms from oriented clay mounts using diagnostic treatments of Mg-, Mg-glycerol, K-25°C, and K-550°C for the six provenance regions detailed in Figure 1B. Diagnostic peaks are labeled for quartz (Q), kaolinite (K), illite (I), smectite (S), vermiculite (V), goethite (G), and gibbsite (Gi). The x-axis showing ° 2θ is identical across all six panels of the figure. Representative samples from each region are Plateau (D4), Lowlands (A3), Rio Apa craton (C6), South Paraguay Belt (E4), Amazon craton (B4), and North Paraguay Belt (F3).

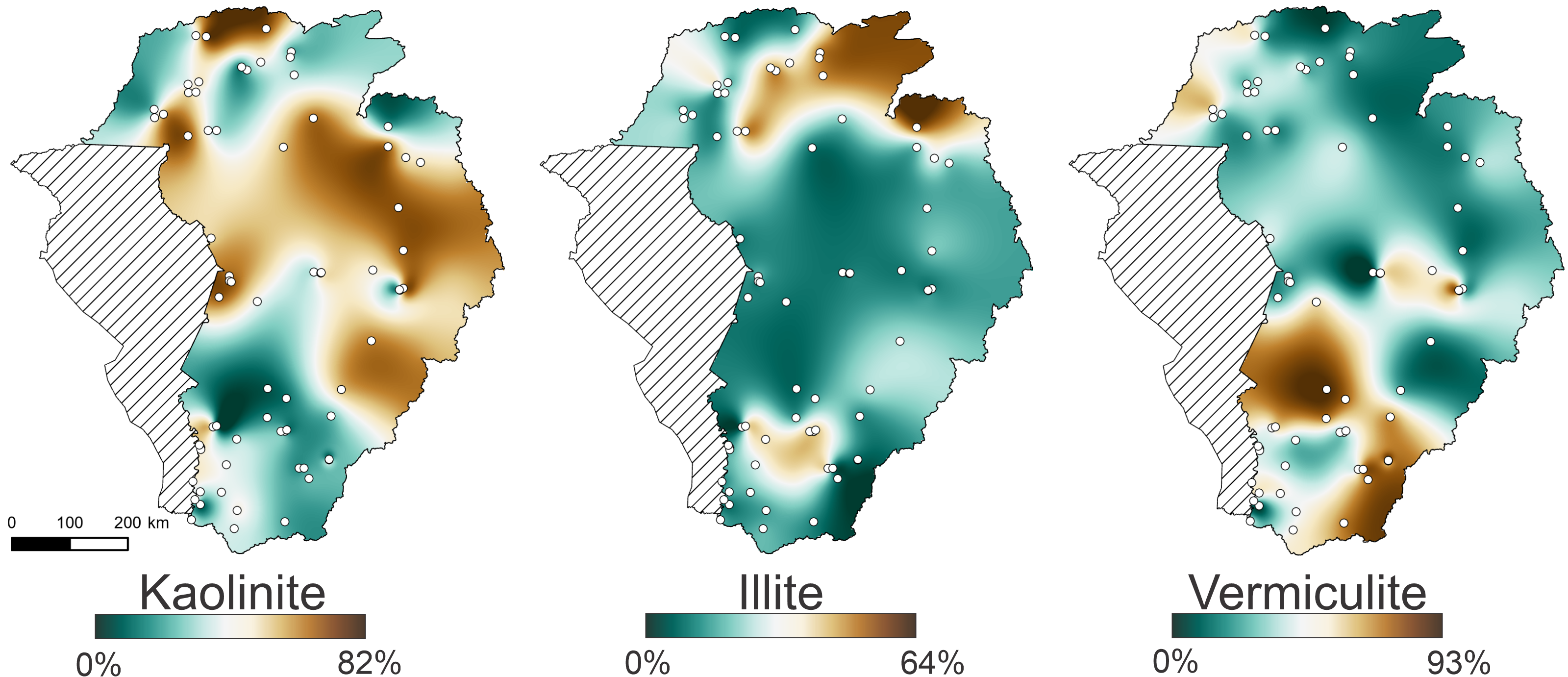

Figure 6. Spatial interpolation maps of the major clay mineral constituents at 71 sampling stations in the Pantanal. For each sampling station, the composition was normalized to 100 based on the kaolinite, illite, and vermiculite percent estimates. Interpolation was not extended to hashed areas. See Calibrated XRD data in Supplementary Materials to consult numerical values.

The full width at half maximum (FWHM) of the diagnostic peaks shows how crystallinity changes along the length of the Taquari River (Aparicio et al., 2006). The kaolinite (001) FWHM remained constant along the length of the megafan, indicating no changes to the crystallinity. The gibbsite diagnostic peak at 4.85 Å in the Taquari River sampling station disappears from the proximal to the distal megafan regions. Chlorite was not found, and smectite was identified only at limited sites such as sample A26 in the medial Taquari River megafan where the vermiculite and smectite peaks could be clearly disentangled. The average iron content in illite was 2.19 (dimensionless, computed intensity (001)/intensity (002)), with much of the highest iron content located in tributaries of the Jauru, Paraguay, and Cuiabá Rivers in the northern Pantanal.

Gibbsite and goethite are not abundant clay minerals in samples from the Pantanal (25% of samples contained neither of these minerals), but they do constitute important minor components (Figure 7). Sampling stations with both gibbsite and goethite were most frequently present in the north plateau region, where the mean annual precipitation in the basin is the greatest (Figure 3A). Gibbsite was most common in samples along the Taquari River megafan, whereas goethite occurred in samples from the southern plateau and in the medial lowlands (Figure 7A). Samples with neither mineral were common in the Rio Apa craton in the southern Pantanal. Smectite was identified in ~30% of the 71 sampling stations (Figure 7B). The presence of smectite appeared to be distributed across the Pantanal Basin with no specific pattern.

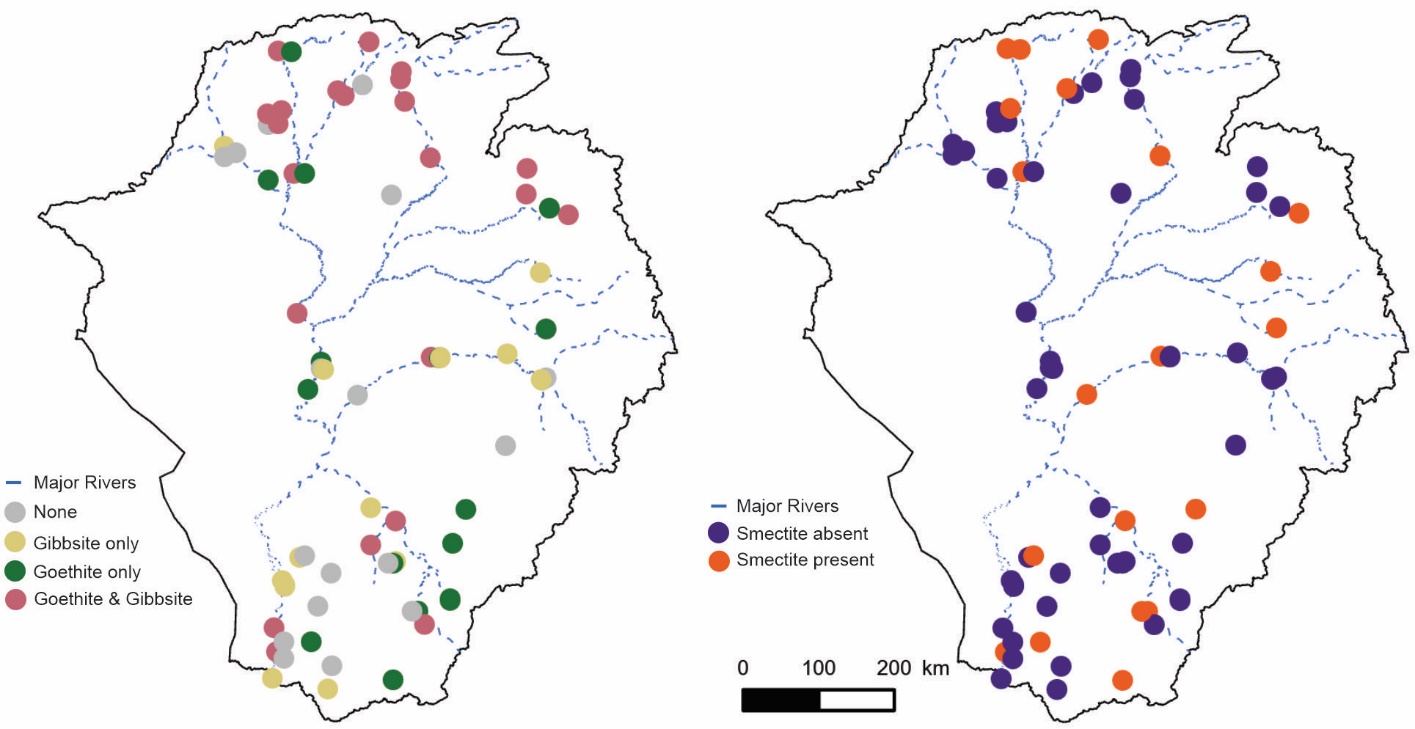

Figure 7. (A) Basin-wide map of gibbsite and goethite among 71 stations. Pink (gibbsite + goethite), green (goethite), yellow (gibbsite), and gray (neither). (B) Map of smectite in the Pantanal marked as purple (no smectite) or orange (smectite present). These maps did not account for the intensity or crystallinity of the mineral peaks.

4.2. Basin-wide geochemistry

Ternary diagrams showed that most samples exhibited >70% Al₂O₃, and all lowland samples >80% Al₂O₃ (Figure 8A, B). Most samples contained <10% Na₂O (Figure 8B) and 20-30% Fe₂O₃ + MgO (Figure 8C). Geochemically, all samples from watersheds in the South Paraguay Belt provenance region and select samples from the Rio Apa craton provenance region were enriched in Ca, Na, and K and low in Al (Figure 8C). Average values for geochemical variables in the six provenance regions further show the greatest SiO₂ enrichment in the lowlands provenance region and the least SiO₂ enrichment in the South Paraguay Belt (Table 1). The South Paraguay Belt and plateau provenance regions had average pH 6.6 and 53% kaolinite, whereas the lowland provenance region and the North Paraguay Belt had an average pH of 5.8 and 22% kaolinite (Table 2).

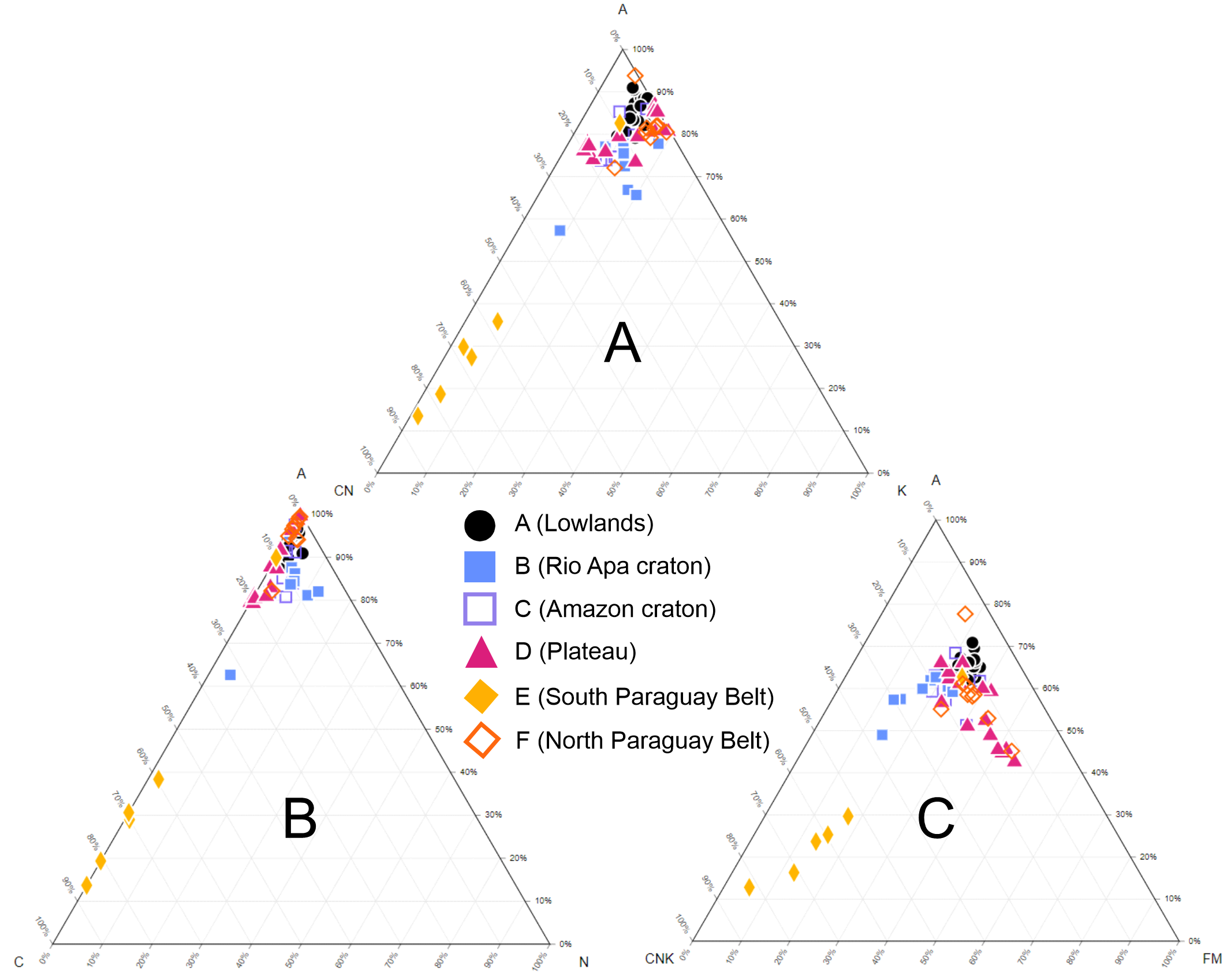

Figure 8. Major elemental compositions of fluvial sediments (n = 66) plotted as molar proportions on Al₂O₃-(CaO + Na₂O)-K₂O (ACNK, panel A), Al₂O₃-CaO-Na₂O (ACN, panel B), and Al₂O₃-(CaO + Na₂O + K₂O)-(Fe₂O₃ + MgO) (ACNKFM, panel C). The ACN and ACNK plots form a linear distribution with South Paraguay Belt samples closer to the C- and the CN-pole, respectively. Most mud samples rich in non-mobile Al plot closer to the A-pole. The ACNKFM plot helps distinguish the Mg-rich samples.

The geochemical discrimination plots show decreasing Al₂O₃ as SiO₂ increases, consistent with quartz addition relative to the upper continental crust (UCC) standard (Figure 9) (Taylor & McLennan, 1995). The lowland, Rio Apa craton, and Amazon craton samples followed this quartz enrichment trend closely, whereas the plateau and Paraguay Belt samples diverged from this quartz enrichment pattern. Approximately 50% of the samples (Figure 9C) contained less SiO₂ than the UCC and were mostly <5 Na₂O+K₂O+MgO+CaO. Most samples followed the quartz addition trend (Figure 9C, D). However, the CIA/WIP plot showed mostly a weathering trend concentrated at 70 – 90 CIA and <40 WIP (Figure 9B).

Figure 9. Geochemical discrimination plots are useful to separate effects of weathering and quartz recycling relative to the upper continental crust (UCC; green star) standard (Taylor & McLennan, 1995). Quartz addition is interpreted as the progressive addition of SiO₂, and chemical weathering is the progressive removal of mobile metals assuming Si and Al are immobile (Garzanti et al., 2010, 2011, 2012). The Al₂O₃/SiO₂ plot shows quartz enrichment patterns for about half of the samples. The two lower plots suggest weathering control and only weak quartz enrichment. All regions here are consistent with the areas defined in Figure 1. The quartz enrichment and weathering trends are approximate in C and D due to the logarithmic scale on the y-axis. The legend is identical to that of Figure 8.

Table 1: Chemical elemental abundance summary statistics

Table 1. Chemical elemental abundance summary statistics derived from Calibrated XRD dara in the Supplementary Materials. Provenance regions are lowlands (A), Amazon craton (B), Rio Apa craton(C), plateau (D), South Paraguay Belt (E), and North Paraguay Belt (F). Average smectite values were not determined due to occurrencein few sampling sites. Abbreviations are Kao = kaolinite and Verm = vermiculite.

Provenance Area	SiO2 wt %	Al2O3 wt %	Fe2O3 wt %	K2O wt %	Na2O wt %	CaO wt %	MgO wt %	Kao	Illite	Verm	CIA	WIP
A Lowlands	71.8	15.0	5.6	1.7	0.1	0.4	0.8	56	5.6	35	85.0	18.0
	Comments: Kaolinite comprised 50 – 60% of the Paraguay River clays near the basin outlet. Vermiculite composed >30% of the lowland clays downstream of the Rio Apa craton.
B Amazon craton	64.1	18.4	7.4	2.1	0.4	1.1	0.9	51.3	16	32.6	78.7	27.2
	Comments: Vermiculite varied 15 – 59%, and illite ranged 7 – 36%.
C Rio Apa craton	64.8	18.2	5.7	3.3	0.8	1.5	0.8	31.4	18.9	38.8	71.3	41.2
	Comments: Smectite was common where volcanic rocks formed 16% of the watershed. Kaolinite was most common in the sample where foliated metamorphic rocks were the single largest constituent lithology.
D Plateau	66.6	13.5	9.5	1.6	0.1	1.0	0.9	41.5	12.1	46.7	79.4	19.2
	Comments: Clay assemblages in the Miranda River watersheds were almost dominantly vermiculite. Two sampling stations may drain the same siliciclastic lithologies but produce vastly different proportions of kaolinite, for example.
E South Paraguay Belt	59.3	12.5	5.5	1.7	0.1	18.7	1.3	18.5	30.3	51.2	34.6	66.4
	Comments: Kaolinite reached the lowest proportions of any area in the Pantanal. Biochemical lithologies were the main parent rock of the watersheds, but clay assemblages were more commonly controlled by the adjacent metamorphic lithologies.
F North Paraguay Belt	68.1	15.3	7.2	2.5	0.1	0.3	1.1	3 7.3	42.6	20.2	81.4	25.8
	Comments: Many samples contained >50% illite, which exceeds all other regions in the Pantanal.

Table 2. pH values for selected samples

Sample	pH	% Kaolinite	Kaolinite FWHM
A2	5.34	57	0.3542
A3	5.40	51	0.4723
F2	5.86	34	0.4723
F1	5.88	73	0.3542
C1	5.94	39	0.3542
C8	5.97	39	0.3542
A27	5.98	52	0.3542
B1	5.99	77	0.3542
C2	6.33	5	0.3542
D1	6.37	25	0.3542
B2	6.58	56	0.3542
E1	6.62	17	0.4723
E3	6.82	15	0.2952
D3	6.85	12	0.3542

Note. Samples are ordered by increasing pH representing the six provenance regions: lowlands (A), Amazon craton (B), Rio Apa craton (C), plateau (D), South Paraguay Belt (E), and North Paraguay Belt (F). The sample with the largest watershed in each provenance region was chosen to obtain the net cumulative pH value.

4.3. Weathering indices and statistical analysis

Table 1 provides summary statistics across all six provenance regions. The CIA and WIP values showed that samples from the lowlands provenance region were the most weathered, especially near the Taquari megafan where high values (83 – 94) of the CIA were recorded. Weathering intensities measured by WIP were more variable in the lowlands (10 – 36) (Figure 10). The Itiquira and Piquiri Rivers draining the plateau highlands immediately north of the Taquari River produced silt plus clay minerals that were consistently highly weathered as indicated by the CIA and WIP. The weathering indices reflected the clay mineral proportions deduced by XRD; the areas with the greatest kaolinite proportions coincided with the highest CIA values and the lowest WIP values for the Piquiri, Cuiabá, São Lourenço, and the Paraguay Rivers at the Taquari megafan (Figure 10). In contrast, the lowest CIA values and highest WIP values were recorded in the Rio Apa and South Paraguay Belt regions (Figure 10).

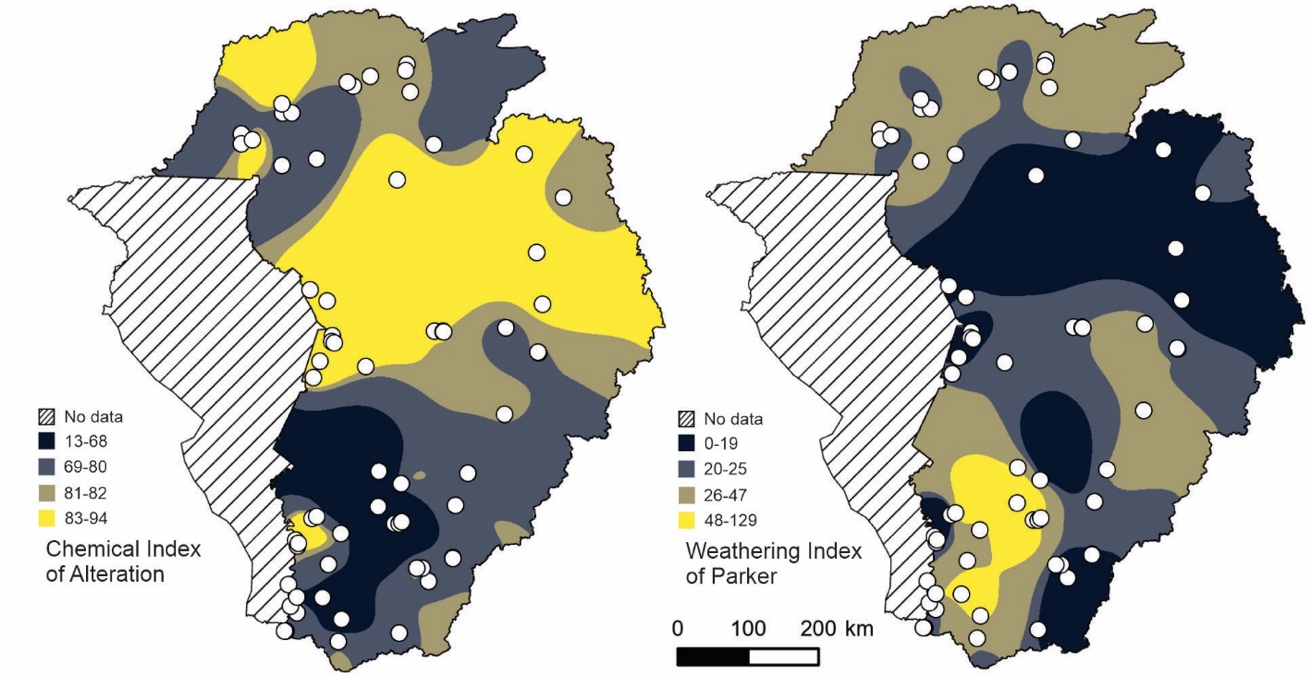

Figure 10. Spatial interpolation maps of chemical weathering indices based on the molar proportions of the major elemental data from 66 sampling stations.

Fe₂O₃ and metamorphic parent lithologies loaded positively on axis 1 of the canonical correspondence analysis (Figure 11). The SiO₂, K₂O, and average watershed slope loaded negatively on axis 1. The average watershed slope, MgO, and Fe₂O₃ loaded positively whereas watershed area, sedimentary parent rocks, and SiO₂ loaded negatively on axis 2. All lowland samples plotted in negative axis 2 space, whereas most of the Paraguay Belt samples plotted in positive axis 2 space. Two large clusters of data points are distinguishable. The first cluster is oriented diagonally along a continuum formed by the SiO₂ and Fe₂O₃ rays with n = 44 sampling stations. The samples with more SiO₂ are located in the same quadrant with kaolinite, and samples with more Fe₂O₃ are associated with vermiculite. The quadrant with vermiculite is characterized by significantly more MgO and slightly more Al₂O₃, as suggested by the length of the shorter ray for Al₂O₃. The second cluster of data is oriented perpendicular to the first cluster, composed mostly of Paraguay Belt samples and associated with illite, K₂O, average watershed slope, and elevation of the sampling stations.

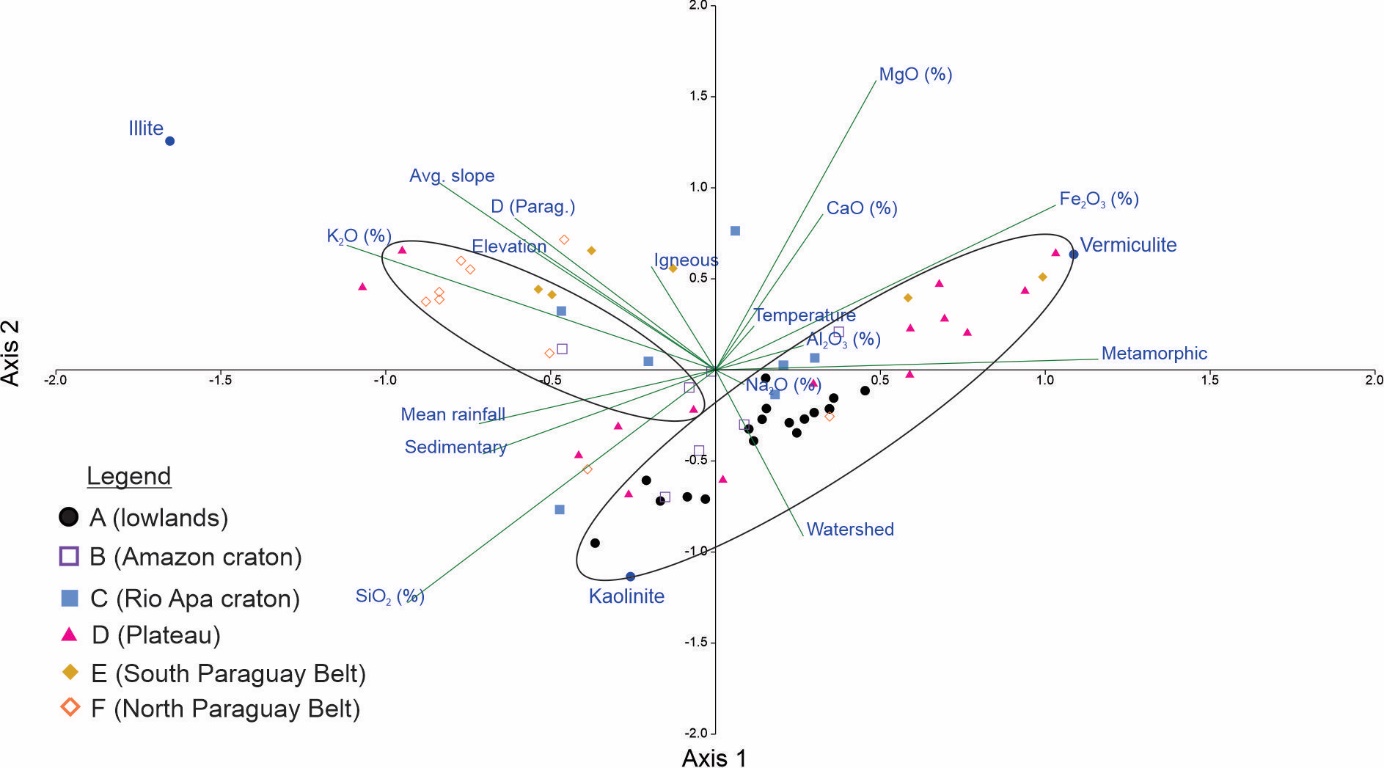

Figure 11. Canonical correspondence analysis shows that the South and North Paraguay Belt areas are enriched in K₂O, whereas the sampling stations in the Miranda River basin in the plateau region are enriched in Fe₂O₂ in the first axis. In the second axis, most of the Rio Apa craton and Paraguay Belt sampling stations show enriched MgO and CaO.

5. Discussion

5.1. Insights from clay mineralogy

5.1. 1. Climate control

The Pantanal Basin is warm and seasonally wet with open cerrado savanna vegetation in the hinterland areas (Cole, 1960), where a pronounced hydroclimate gradient in rainfall and seasonality controls modern clay distribution. The Taquari River forms a weathering hinge between the increased weathering intensity to its north and reduced weathering intensity to its south. The greater rainfall and shorter dry season north of the Taquari River results in high kaolinite production as bedrock and soils are leached (Goldich, 1938; Depetris & Griffin, 1968; Singer, 1980; Garzanti et al., 2014; Guinoiseau et al., 2021). Most neoformed kaolinite in soils is subsequently transported downstream towards the Paraguay River in the suspended sediment fraction (e.g., Depetris & Probst, 1998). The fluvial sediment samples in the medial Pantanal reflect the cumulative climate-driven weathering north of the Taquari River hinge. On the basis of greater kaolinite abundance in the northern Pantanal, our data broadly support the hypothesis that mean annual precipitation controls clay mineralogy.

As the clay minerals are carried as suspended loads, their composition is subsequently transformed (Setti et al., 2014). Detrital clays such as vermiculite and illite can be compared with transformed clays such as kaolinite and smectite as a measure of chemical weathering and mechanical erosion (Shover, 1963; Vanderaveroet et al., 2000; Setti et al., 2014). The Jauru and Paraguay River clays west of the Província Serrana are mostly kaolinite, plus illite from the North Paraguay Belt. These clays likely originated from the Amazon craton and the Paraguay Belt lithologies, in addition to the siliciclastic plateau at the northernmost end of the basin. The illite (> 60%) in the uppermost Cuiabá River and along small watersheds of the North Paraguay Belt points to rapid mechanical weathering (e.g., Selvaraj & Chen, 2006). Mechanical weathering breaks down outcrops of the muscovite-bearing Cuiabá Group rocks (Alvarenga et al., 2011; Vasconcelos et al., 2015). This interpretation is consistent with the lithosols, which are thin and poorly developed (Camargo & Bennema, 1966). Following the confluence with the Cuiabá River, the Paraguay River carries more kaolinite, similar to levels recorded in the tributaries of the Cuiabá River.

Lower kaolinite proportions in sampling stations south of the Taquari River are interpreted to be linked to reduced rainfall (~1200 mm/y) and increased length of the dry season (4 – 5 months). In contrast, areas north of the Taquari River are characterized by ~1800 mm/y and 1 – 2 month-long dry season. This pattern of reduced weathering intensity that produces more detrital clays (e.g., illite and vermiculite) relative to transformed clays (e.g., kaolinite and smectite) supports our hypothesis.

The 2:1 type clays were primarily vermiculite, commonly a byproduct of incomplete weathering of biotite (Cleaves et al., 1970; Ojanuga, 1973; Johnsson & Meade, 1990). The Paraguay River clays downstream of the confluence with the Taquari and Miranda Rivers begin to incorporate substantial vermiculite. The South Paraguay Belt region and the plateau provenance region south of the Taquari River weathering hinge contain ferric luvisols overlying carbonate and foliated metamorphic rocks, a unique combination of geological factors in the Pantanal Basin. As the Paraguay River flows along the Rio Apa craton towards the basin outlet at the confluence with the Apa River, the clay composition is modified by the illite and vermiculite chemically and mechanically eroded from the craton. The intensity of weathering inferred from the relative proportions of 50% kaolinite and 50% illite + vermiculite indicates incomplete weathering closer to the outlet (samples A2 and A3; Table S1) than in the medial Pantanal Basin (samples A6 – A9; Table S1). The modification of the Paraguay River suspended clays attests to non-linear compositional changes downstream.

5.1.2. Soil control

The composition of extant soils in the provenance regions is interpreted to be an important secondary control on modern clay mineralogy and chemistry. Although we did not examine the mineralogy of soil profiles adjacent to each sample, we can infer soil properties and clays based on the soil classification map (Figure 2B). Using the soil classification map is sufficient for this study, because each sample is an integrated result of the cumulative processes in the entire upstream watershed.

The extensive availability of kaolinite in the dominant soils helps to explain higher proportions of kaolinite in modern fluvial samples north of the Taquari weathering hinge. Soils in the northern Pantanal Basin were described as acrisols, arenosols, and ferralsols. The acrisols and ferralsols are known to have high amounts of kaolinite and gibbsite clays in the topsoil and subsoil, whereas the arenosols contain kaolinite and illite primarily in the subsoil (Ito & Wagai, 2017). The abundant kaolinite usually occurs in lateritic soils (e.g., Truckenbrodt et al., 1991), which may appear as ferralsols or ferralic arenosols in the Pantanal (Figure 2B) (Righi & Meunier, 1995; Mathian et al., 2020). Some of the kaolinite formed from laterite is instead replaced by hematite (Ambrosi et al., 1986), as observed by the iron-rich concretions (~1 cm in diameter) on the armored, wind-deflated surface of the Taquari River’s lateritic soils (Figure 12). Although not shown on the map, gleysols and plinthosols also contribute to the high occurrence of kaolinite in the northern Pantanal soils (Coringa et al., 2012).

Soils in the southern Pantanal Basin are distinguished by the extensive development of luvisols that contain greater proportions of illite in both the topsoil and subsoil (Ito & Wagai, 2017; Warr, 2022). The South Paraguay Belt soils are dominantly mollisols, containing primarily vermiculite, followed by illite (Warr, 2022). Mollisols are interpreted as key contributors to the higher proportions of vermiculite in the southern Pantanal. Soil clay mineralogy and the processes may be altered due to human-induced land use changes (e.g., Céspedes-Payret et al., 2012; Fink et al., 2014; Austin et al., 2018). However, the relationship between land use and fluvial clay minerals remains unclear, so disentangling the anthropogenic land use effect on clays from each sample is not feasible.

The presence of gibbsite is an indicator of intense weathering and desilication (Certini et al., 2006; Reatto et al., 2008). Gibbsite is an aluminum hydroxide associated with strong hydrolysis and bauxitization processes (Chamley, 1989; Velde & Meunier, 2008). Bauxitization, or the formation of aluminum ore, occurs when extensive hydrolysis leads to gibbsite authigenesis. We infer that the gibbsite was eroded primarily from the surrounding soil cover (phaeozems, luvisols, and ferralsols). The northeastern Pantanal including the São Lourenço and Cuiabá Rivers are sources of gibbsite. Gibbsite peaks were also identified in the Amazon craton rivers and the South Paraguay Belt samples. The gibbsite identified in the medial Paraguay River, upstream of the confluence with the Taquari River, were likely derived from erosion of lateritic soils in the uppermost regions of the plateau provenance region. Iron-bearing minerals, particularly hematite and goethite, are common in lateritic soils (Madeira et al., 1997). However, the occurrence of gibbsite and goethite was not consistently related to higher or lower kaolinite proportions. This observation suggests that the highest proportions of kaolinite are independent of goethite and gibbsite occurrence.

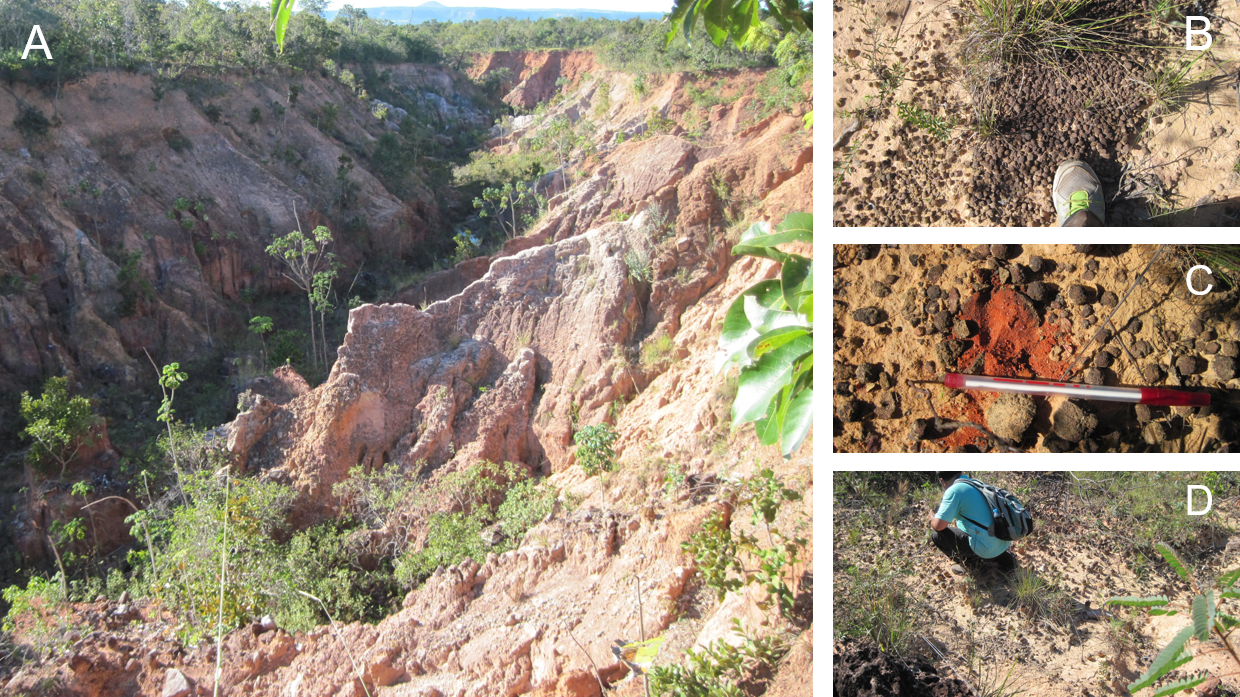

Figure 12. Uppermost hinterland of the Taquari River watershed consists of (A) deeply incised gullies facilitating sediment export to the lowlands. The surfaces are commonly characterized by friable iron-rich concretions, known as ferricretes (B, C, D). Photo credit: E. Lo.

5.1.3. Geological and slope control

When illite is generated from metamorphic rocks, rapid removal of material is often implicated, which is expected in a tropical environment with heavy seasonal rainfall like the Pantanal (Selvaraj & Chen, 2006; Velde & Meunier, 2008; Wang et al., 2011). The close spatial relationship between illite abundances and the North and South Paraguay Belt provenance regions suggests a direct contribution from the muscovite-rich greenschist facies (Almeida et al., 1976). The broad spatial occurrence of illite in the North Paraguay Belt region is evidence of mechanical bedrock erosion observed in regions of high precipitation (e.g., Liu et al., 2012). Calculation of iron content in the mica structure yielded a relatively high dimensionless average value of 2.19 (dimensionless, computed intensity (001)/intensity (002)) (Brown & Brindley, 1980; Deconinck et al., 1988). High iron availability is a prerequisite for authigenesis of ferric illite (Furquim et al., 2010), consistent with tropical environments that generate extensive iron oxides (Liptzin & Silver, 2009). The largest values for Fe content in the illite were mostly concentrated north of the Taquari weathering hinge. The increased distribution of illite in the North Paraguay Belt is consistent with present-day weathering conditions.

The weathering of phyllite and amphibolite schist outcrops along the Salobra River, the Miranda River, and the uppermost Apa River are the best candidates for vermiculite generation. Select sampling stations in the Miranda River contain as much as 90% vermiculite, which we attribute to the erosion of adjacent Cuiabá Group phyllites (Lacerda Filho et al., 2006). Dacites such as the Serra Geral Formation in the study area have generated vermiculite clays in other regions (Harvey & Beck, 1962). Illite may also be altered to vermiculite as K is released in the soils, creating an interlayered illite-vermiculite mineral similar to Amazon Basin soils and verified with NEWMOD II fitting (Han et al., 2014; Delarmelinda et al., 2017). Sample E1 in the South Paraguay Belt region contained an intermediate peak at 11.9 Å suggesting the presence of hydroxy-interlayered vermiculite (HIV), implicating a mixed layer illite-HIV.

The average watershed slope regulates fluvial incision and channel behavior. Steeper slopes favor higher mass wasting rates, incised river channels, and minimal pedogenic development. In contrast, the low-slope floodplains act as temporary sinks for unconsolidated, highly weathered fine sediment subject to fluvial channel migration. The Taquari River at the distal Zé da Costa avulsion (sample A25; Table S1) contained greater amounts of vermiculite than at the medial Caronal avulsion (samples A26-A27; Table S1), suggesting that reworked floodplain sediments may be an important contribution of vermiculite in the distal Taquari River. The exhumation of floodplain deposits can remobilize clays that were deposited during drier Holocene climatic conditions where transformation of clays was less efficient (McGlue et al., 2015, 2017; Novello et al., 2017). Vermiculite is diluted by dominantly kaolinitic tributary inputs when the Taquari River discharges into the Paraguay River.

Clay minerals may represent inherited weathering phases from recycling of more ancient sedimentary rocks that are exhumed to the surface environment (Eberl et al., 1997; Wilson, 1999; Bhattacharyya et al., 2000). For example, inherited clays may come from clay coats that formed prior to lithification of aeolian sands into arenites (Wilson, 1992). The Mesozoic Botucatu Formation in the plateau provenance region is an aeolian sandstone with amorphous silica, pore-filling, and kaolinite and smectite grain coatings (França et al., 2003; Hirata et al., 2011; Bertolini et al., 2020; 2021). The Mesozoic Era was characterized by hothouse conditions (Holz, 2015) followed by diagenetic processes that contributed to the generation of kaolinite in the Botucatu Formation (Corrêa et al., 2021). This formation may have contributed an unknown amount of inherited kaolinite to the silt plus clay fraction recovered in modern river samples (Balan et al., 2007). Inherited kaolinite is commonly more ordered than neoformed kaolinite (Balan et al., 2007; Bauluz et al., 2008), such that higher crystallinity with lower FWHM can indicate inheritance. Samples with the most disordered (neoformed) kaolinite (FWHM 0.45 ° 2θ) were located at the confluence of the Taquari and Paraguay Rivers, where elevations are very low and the annual floodwater inundation period is high (Ivory et al., 2019). Furian et al. (2002) likewise encountered kaolinite in poorly drained areas of the Pantanal. The high levels of kaolinite at the confluence of the distal Taquari River and the Paraguay River further attest to kaolinite authigenesis associated with strong hydrolysis (Chamley, 1989). Estimating inherited versus neoformed kaolinite remains challenging, because studies such as Balan et al. (2007) examined these processes primarily in soil profiles, not in modern fluvial samples.

5.2. Insights from geochemistry

Clay minerals generated today across the Pantanal Basin are controlled primarily by climate-induced chemical weathering and secondarily by soil and parent lithology. Nearly all Rio Apa craton samples were relatively enriched in Na, K, and Al compared to samples from rivers draining the other provenance regions. Similarly, the Amazon craton samples had high relative Na, K, and Al, but less than that of the Rio Apa craton samples. South Paraguay Belt samples were all enriched in Fe and Ca. Most of the lowland samples were high in Si, reflecting the quartzose nature of muds where repeated cycles of flooding and channel avulsions enhance sediment reworking (e.g., Louzada et al., 2021). The rivers draining provenance regions with the lowest CIA values were the Rio Apa craton and the South Paraguay Belt, suggesting that the weathering effect for these metamorphic and carbonate rocks was low, most likely due to the reduced mean annual rainfall (~1200 mm/y) (Fick & Hijmans, 2017). These two regions also had WIP >40, indicating reduced quartz recycling relative to the other four provenance regions. Most samples from the Pantanal had CIA 75 – 95 and had WIP <20, attesting to both high quartz recycling and extensive weathering effects (Figure 9B). Our spatial distribution maps show that this effect was most concentrated in the medial Pantanal Basin, supplied mainly by the Cuiabá, São Lourenço, and Piquiri Rivers (Figure 10). Maximum quartz recycling and weathering effects were consistent with the highest quartz compositions observed in Paraguay River fine fraction samples (n = 7) near the confluence of the Paraguay River with the Cuiabá and Taquari Rivers. The lowest WIP values in the basin are likely linked to the Cretaceous Botucatu Formation and the Cretaceous Bauru Formation quartz arenites of the plateau provenance region (Fernandes & Magalhães Ribeiro, 2015; Bertolini et al., 2021). Because quartz arenite weathering contributes little to the clay fraction in extant river muds, we interpret that most of the depletion of mobile ions occurred through kaolinite authigenesis by transformation. This view is consistent with the presence of goethite and gibbsite in unconsolidated sediments of the Botucatu Formation (Fagundes & Zuquette, 2011).

5.3. Clay transformation in the Plata River

The clay composition of the Pantanal back-bulge is distinguishable from the Andean foreland basin clays. The Paraguay, Paraná, and Uruguay Rivers are the primary sources of kaolinite to the Plata River estuary (Table S7), which ranges from 50 – 75% in the suspended load (Figure 13) (Depetris & Griffin, 1968; Manassero et al., 2008). Samples downstream of the Pantanal outlet were commonly 15 – 20% kaolinite, indicating dilution of the kaolinite by sub-Andes-derived illite. The Bermejo River is an example of concentrated illite supply to the Paraguay River (Bertolino & Depetris, 1992; McGlue et al., 2016; Repasch et al., 2021). Bermejo clays were <5% kaolinite near the thrust front, and the kaolinite remained <5% as far as 40 km downstream (Bertolino & Depetris, 1992). Illite comprised ~60% of clay composition throughout the length of the Bermejo River to its confluence with the Paraguay River. Other rivers such as the Pilcomayo and the Salado Rivers that drain the Andean thrust belt were similarly enriched in illite (Bertolino & Depetris, 1992; McGlue et al., 2016). We ascribe the dilution of kaolinite in the Paraguay and Paraná Rivers to these illite-rich clay compositions draining the Andean foothills. The back-bulge and interior craton are dominated by kaolinite, thereby creating ancient wetland deposits that are also rich in kaolinite (e.g., Tineo et al., 2022). In contrast, the thrust front sediments are dominated by illite and smectite, with the latter influenced by the dry climate of the Chaco Seco (McGlue et al., 2016).

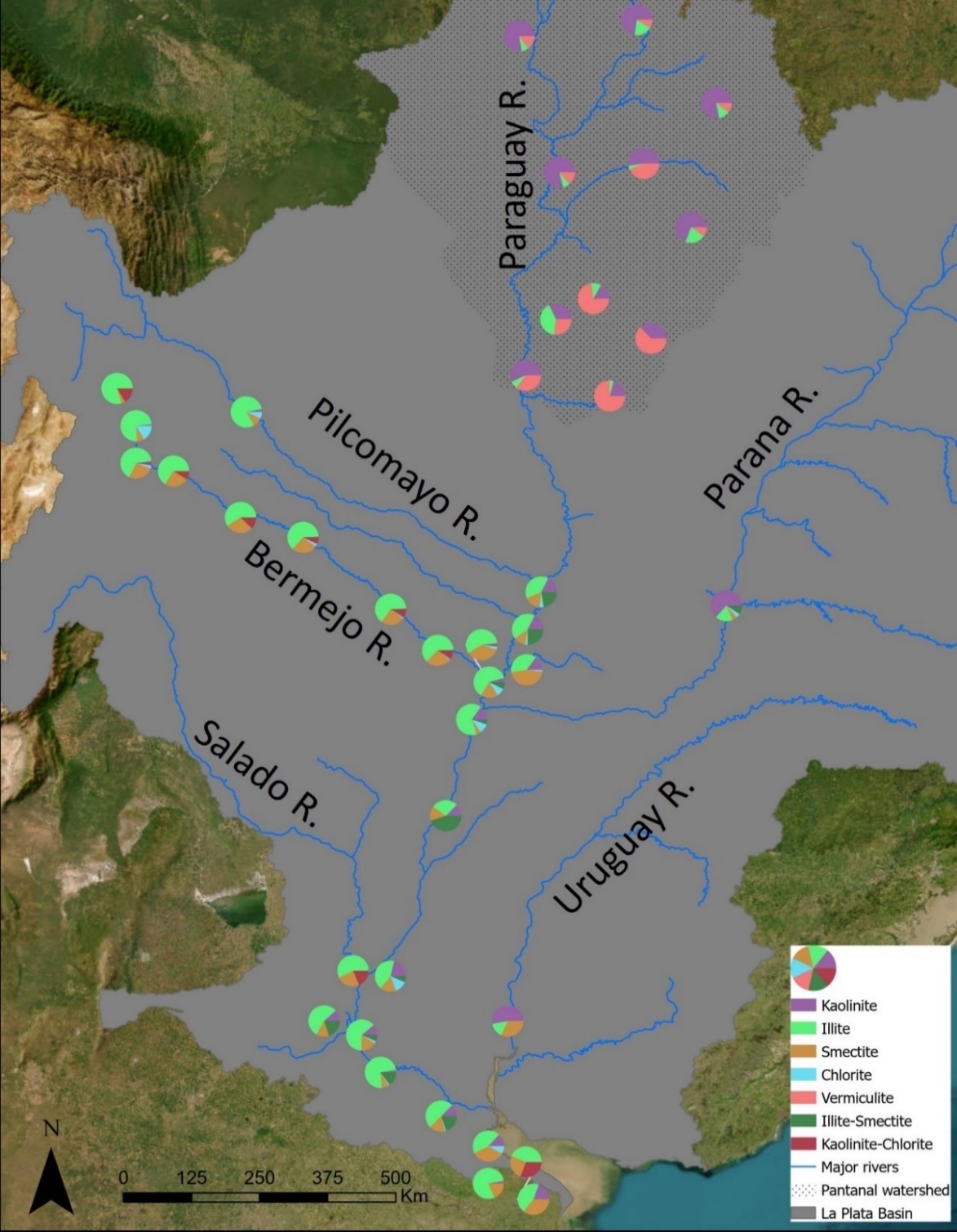

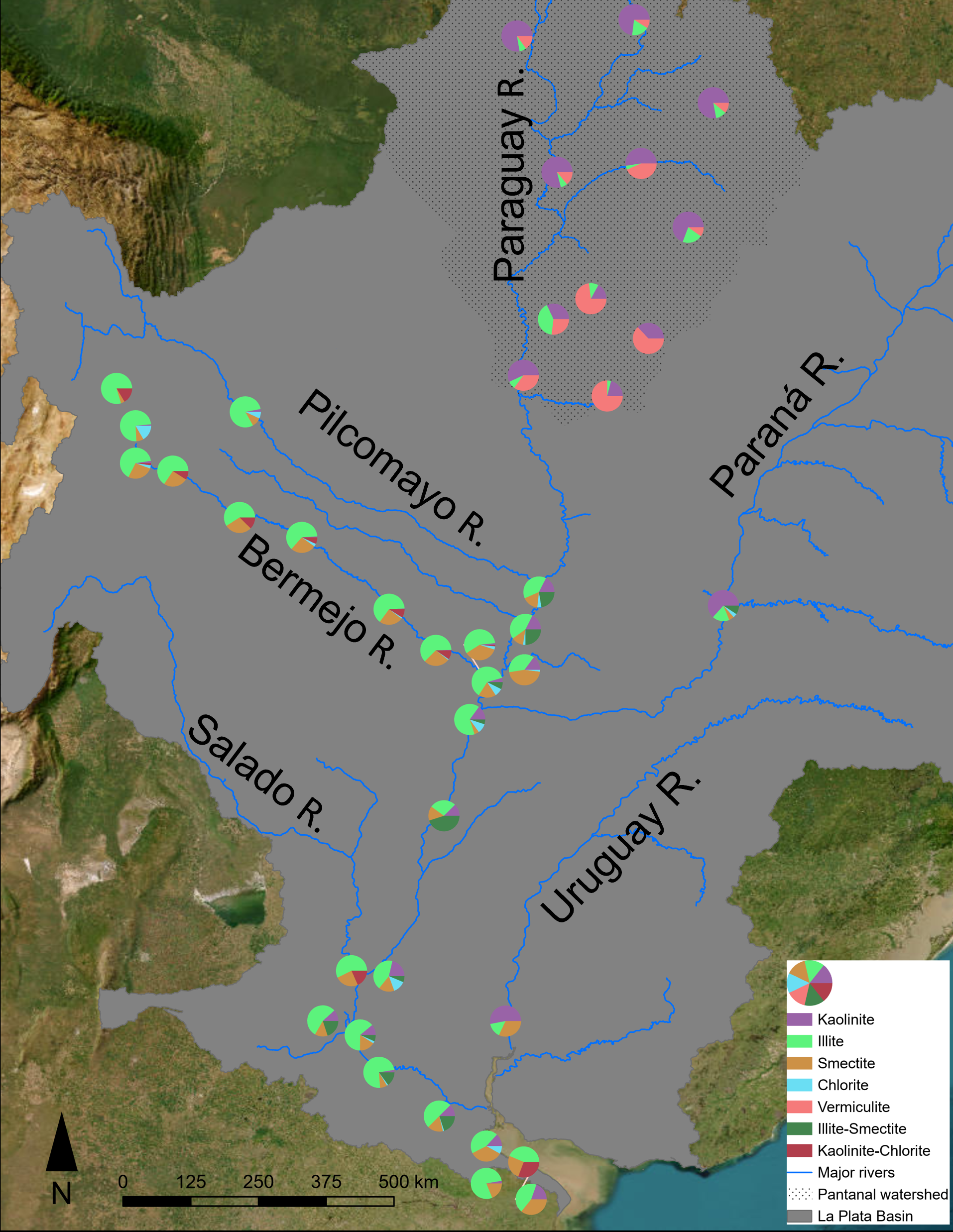

Figure 13. Summary of mud transport from the Paraguay River to the confluence with the Pilcomayo, Bermejo, Paraná, and Salado Rivers to the Plata River mouth. Data (n = 84) from past studies (Depetris & Griffin, 1968; Bertolino & Depetris, 1992; Ronco et al., 2001; Manassero et al., 2008; McGlue et al., 2016) (Table S7). Pantanal samples in the hatched area are from this study. The rivers were obtained from the HydroSheds database (Lehner et al., 2008), and the Plata River watershed was downloaded from the Transboundary Freshwater Diplomacy Database, College of Earth, Ocean, and Atmospheric Sciences, Oregon State University. Additional information about the TFDD can be found at: https://transboundarywaters.oregonstate.edu.

We find that the dominantly kaolinite clay composition at the Pantanal outlet is controlled by climate > soil > lithology. We interpret that because vermiculite clays were not present in downstream clay fractions, this observation suggests that vermiculite might be diluted by illite as it exits the Pantanal Basin. In addition to this dilution effect, we identify three potential factors for the rapid change in clay composition. First, the decreased kaolinite in the Paraguay and the Paraná Rivers roughly coincide with the boundary between tropical savanna climate (Aw) and the humid subtropical (Cfa) zones (Beck et al., 2018). Campodonico et al. (2016) demonstrate that the CIA decreases downstream in the higher latitude and sub-tropical climate regions. Second, the adjacent lithologies may be supplying illite locally to the fluvial clays. Illite was formed from burial diagenesis (Lanson et al., 2002) and locally eroded into the Paraguay River as it flowed past the Rio Apa craton, which diluted the sediment samples. The lower Paraguay River flows adjacent to the Carboniferous Coronel Oviedo Group, consisting of shale, arenite, diamictite, and glacial tills (Orué, 1996). Third, kaolinite-rich clays might be preserved near the wetland but not preserved in much farther downstream sediments. Further systematic investigations of downstream clay compositions and heavy mineral suites to constrain the controls on clay composition in the entire Plata River catchment is warranted. This study of modern fluvial clays is an important contribution to understanding clay distribution in modern river sediments and provides a key source of information to improve the accuracy of global clay distribution models (Ito & Wagai, 2017; Warr, 2022).

Conclusions

This study of modern fluvial clays plus silt from 74 sampling stationss revealed the spatial distribution of clay minerals and major fine-fraction chemical elements across an extant tropical back-bulge basin. Mineralogy and chemical weathering indices (CIA and WIP) showed distinct areas of clay generation among the provenance regions. The controls on fine-fraction mineralogy were systematically assessed, and the implications for the downstream fine sediment in the Plata River were summarized.

- The clay proportions follow the rank order pattern of kaolinite > vermiculite > illite > smectite, but these clays are not evenly distributed. The Taquari River forms a prominent E-W trending hinge across the Pantanal Basin, where more intensive leaching and soil authigenesis produce more kaolinite north of the river. Vermiculite was more common south of the Taquari River, and illite was most common along the North Paraguay Belt. Gibbsite and goethite in the clay-sized fraction signaled contribution from heavily weathered soils such as laterites.

- Major elemental geochemistry of the clay plus silt was used to calculate average CIA = 76.4 and average WIP = 27.6 throughout the Pantanal. The medial Pantanal Basin is highly weathered at the confluence of the Taquari and Paraguay Rivers, representing the cumulative weathering effects of the northern Pantanal. The southern Pantanal fine sediments along the Rio Apa craton and the South Paraguay Belt were poorly weathered, displaying greater values of CaO, Na₂O, and K₂O consistent with climate and parent rocks.

- The main controls on modern fluvial clay plus silt were climate > soil > parent rock. This interpretation was supported by the Taquari River weathering hinge, where kaolinite-rich clays north of the river were linked to greater precipitation and shorter dry season. This same region also contained more kaolinite-rich soils such as acrisols and ferralsols. In contrast, mollisols and luvisols coupled with reduced precipitation and longer dry seasons south of the river allowed for more detrital clays: illite and vermiculite. Illite was especially linked to low-grade metamorphic lithologies present only in the Paraguay Belt.

- The Pantanal Basin’s clay mineral composition near the basin outlet is primarily kaolinite and vermiculite, contrasting sharply with detrital back-bulge clays from the sub-tropics (Bermejo, Pilcomayo, etc.), which are dominated by illite and smectite. The illite transported from the sub-Andean regions significantly dilutes the proportion of kaolinite in the Plata River. This composition likely generates distinct mudstones in the stratigraphy, with implications for interpretations of the rock record.
