The AI516 and AI523 antibodies recognize the Klebsiella pneumoniae KpGe strain by flow cytometry


  • Xenia Crespo-Yanez
  • Imen Ayadi



The recombinant antibodies AE516 and AI523 bind to the surface of the Klebsiella pneumoniae KpGe strain, as detected by flow cytometry. They do not bind to a K. pneumoniae strain defective in O-antigen synthesis.


Klebsiella pneumoniae is a Gram-negative bacterium of clinical importance due to its ability to provoke infections like pneumonia, and to the emergence of multidrug resistant strains like K. pneumoniae 52145 (Rice, 2008). The KpGe strain is a non-pathogenic, non-capsulated strain of K. pneumoniae (Lima et al., 2018). Mutants defective for O-antigen synthesis, such as wbbMstrains, lost the ability to mount virulent infections in various hosts (Guan et al., 2001; Benghezal et al., 2006). Here, we demonstrate by flow cytometry the ability of the recombinant antibodies AI516 and AI523 to bind to live K. pneumoniae KpGe strain, but not a wbbM mutant.

Materials & Methods

Antibodies: ABCD_AI516 and ABCD_AI523 antibodies (ABCD nomenclature, were produced by the Geneva Antibody Facility ( as mini-antibodies with the antigen-binding portion fused to a rabbit IgG Fc. The synthesized scFv sequences (Twist Bioscience) correspond to the sequences of the variable regions of the clones 9H9-H7 and G3-97 respectively, joined by a peptide linker (GGGGS)3. 9H9-H7 and G3-97 antibodies were originally raised against the O-antigen of Klebsiella pneumoniae O1/O2 serotype (Szijártó et al., 2017). HEK293 suspension cells (growing in HEK TF medium, Xell 861-0001, supplemented with 0.1% Pluronic F68, Sigma P1300) were transiently transfected with the vector coding for the scFv-Fc of each antibody. Supernatants (15 mg/L for AI516 and 30 mg/L for AI523) were collected after 4 days.

Antigen: K. pneumoniae KpGe WT and wbbM were cultivated overnight at 37 °C in 3 mL of LB medium (Froquet et al., 2009).

Protocol: 1 mL of bacterial culture was centrifuged for 3 min at 4500 rpm. Bacteria were washed in 1 mL of SBS buffer (2 mM Na2HPO4•2H2O, 14.7 mM KH2PO4, 100 mM sorbitol, pH 6.0). All subsequent steps were performed in SBS buffer. Bacteria were resuspended in 1 mL of buffer and diluted 1:100. 200 µL of diluted bacteria were incubated for 15 min with 5 µg/mL of primary antibody at room temperature and under agitation. Bacteria were then centrifuged, washed with 1 mL of buffer, resuspended in 400 µL, then incubated with Alexa 488-coupled goat anti-rabbit IgG (Life Technologies A-11008, diluted 1:200) for 15 min. Bacteria were washed once with 1 mL of buffer and resuspended in 400 µL before analysis by flow cytometry (BD LSRFortessa Cell Analyzer, 647800E6).


K. pneumoniae KpGe strain incubated with AI516 and AI523 antibodies exhibited a clear fluorescent signal compared to the negative control, where no primary antibody was used (Fig. 1, upper panels). As a specificity control, AI516 and AI523 antibodies did not measurably bind to the O-antigen deficient strain, KpGe wbbM(Fig. 1, lower panels).

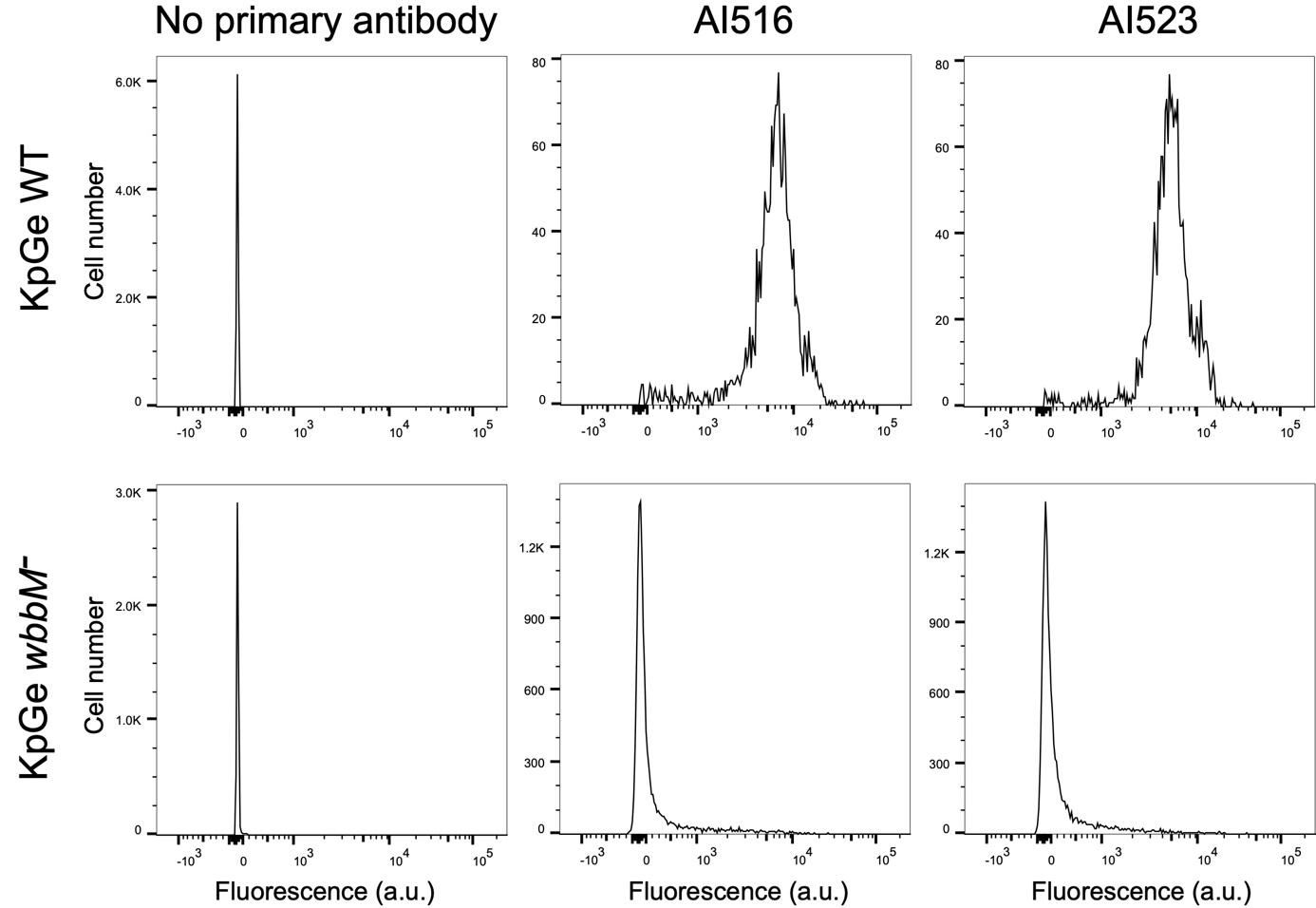

Figure 1. Live K. pneumoniae KpGe are coated with AI516 and AI523 antibodies, as detected by flow cytometry. Graphs depict the number of events (Cell number axis) vs. the Alexa Fluor 488 signal (Fluorescence axis). AI516 and AI523 antibodies bound specifically to KpGe WT strain, but not to the O-antigen deficient KpGe wbbM– strain. No labelling was seen when the primary antibody was omitted ("No primary antibody" panels).

Conflict of interest

The authors declare no conflict of interest.


Benghezal M, Fauvarque MO, Tournebize R, et al. Specific host genes required for the killing of Klebsiella bacteria by phagocytes. Cell Microbiol. 2006; 8(1):139-48. PMID: 16367873.

Froquet R, Lelong E, Marchetti A, Cosson P. Dictyostelium discoideum: a model host to measure bacterial virulence. Nat Protoc. 2009; 4(1):25-30. PMID: 19131953.

Guan S, Clarke AJ, Whitfield C. Functional analysis of the galactosyltransferases required for biosynthesis of D-galactan I, a component of the lipopolysaccharide O1 antigen of Klebsiella pneumoniae. J Bacteriol. 2001; 183(11):3318-27. PMID: 11344139

Lima WC, Pillonel T, Bertelli C, Ifrid E, Greub G, Cosson P. Genome sequencing and functional characterization of the non-pathogenic Klebsiella pneumoniae KpGe bacteria. Microbes Infect. 2018; 20(5):293-301. PMID: 29753816.

Rice LB. Federal funding for the study of antimicrobial resistance in nosocomial pathogens: no ESKAPE. J Infect Dis. 2008; 197(8):1079-81. PMID: 18419525.

Szijárto V, Nagy G, Guachalla L, et al. Anti-galactan II monoclonal antibodies targeting Klebsiella pneumoniae. Austria/Germany; WO2018029356, 2017.
